Multicore Unscreened Armoured Cables-Belden Equivalent 28538

Application

These multicore unscreened armoured cables are Type MC Metal Clad cables.

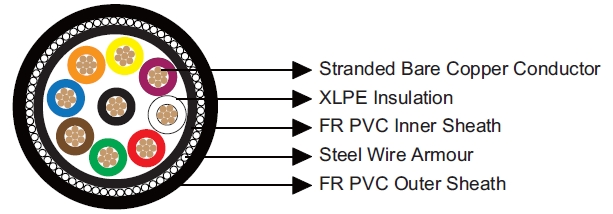

Construction

Conductor: Bare copper wire.

Insulation: XLPE.

Inner Sheath: FR PVC.

Armour: Steel wire armour

Outer Sheath: FR PVC

Insulation Colour: Black, White, Red, Green, Brown, Blue, Orange, Yellow, Purple. Other
colours are available upon your request.

Electrical & Mechanical Characteristics

AWG		12
Conductor Construction		7x20
Nominal Conductor DC Resistance @20℃	Ω/km	5
Voltage Rating	V	600
Bending Radius		13xOverall Diameter
Operating Temperature	℃	-40~90

Dimensions

Ordering Code	No. of pairs	Insulation Thickness	Sheath Thickness	Overall Diameter
		mm	mm	mm
BE1128538V SWA	9	0.8	1.7	24.82
