Multicore Overall Screened Cables
Multicore Overall Screened Cables-Belden Equivalent 8770
Application
These multicore overall screened cables have individually insulated cores laid up in an
aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as
audio, control and instrumentation cables.

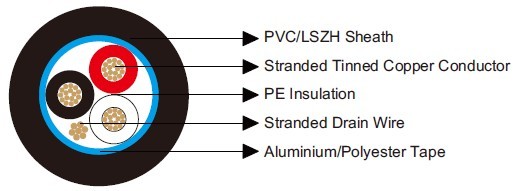

Construction
Conductor: Tinned copper wire.
Insulation: PE.
Overall Screen: Aluminium/Polyester
tape.
Drain Wire: Tinned copper wire.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: Black, Red, Clear.
Electrical & Mechanical Characteristics
| AWG | 18 | |
| Conductor Construction | 16x0.25 | |
| UL Style | 2093 | |
| Maximum Conductor Resistance | Ω/km | 23 |
| Voltage Rating | V | 300 |
| Nominal Capacitance Conductor to Conductor | pF/m | 79 |
| Nominal Capacitance Conductor to Screen | pF/m | 157 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -20~60 |
Dimensions
| Ordering Code | No. of Cores | Insulation Thickness | Sheath Thickness | Overall Diameter |
| mm | mm | mm | ||
| BE118770V | 3 | 0.46 | 0.84 | 6.3 |
| BE118770H | 3 | 0.46 | 0.84 | 6.3 |
