BS 5467 Armoured Power Cables, 600/1000V

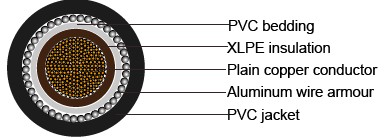

Single-core 600/1000 V cables with circular stranded copper conductor
Application
These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground.
Construction
Conductor |
Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228. |
Insulation Colour Code |
XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6) 1 Core : Brown |
|
2 Cores: Brown or Blue |
|
3 Cores: Brown, Black, Grey 4 Cores: Blue, Brown, Black, Grey 5 Cores: Green/Yellow, Blue, Brown, Black, Grey Above 5 Cores: White Cores with black numbers |
Bedding Armour Outer Sheath |
PVC (Polyvinyl Chloride) Single Core: AWA (Aluminum Wire Armour)Multi Core: SWA (Steel Wire Armour) PVC(Polyvinyl Chloride) |
Technical Information
Voltage rating 600/1000V
Temperature rating 0°C to +90°C
Bending radius 1.5mm² to 16mm²: 6 x overall diameter
25mm² and above: 8 x overall diameter
Flame retardant IEC60332 part 1, BS4066 part 1
Nominal Cross-sectional Area |
Strand Type |
Nominal Insulation thickness |
Nominal beddingthickness |
Nominal Alum Wire dia. |
Nominal Sheath thickness |
Approx.Overall Diameter |
AprroxWeight |
mm² |
No./mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
1x50 |
19/1.78 |
1.0 |
0.8 |
0.9 |
1.5 |
17.5 |
800 |
1x70 |
19/2.14 |
1.1 |
0.8 |
1.25 |
1.5 |
20.2 |
990 |
1x95 |
19/2.52 |
1.1 |
0.8 |
1.25 |
1.6 |
22.3 |
1280 |
1x120 |
37/2.03 |
1.2 |
0.8 |
1.25 |
1.6 |
24.2 |
1550 |
1x150 |
37/2.25 |
1.4 |
1 |
1.6 |
1.7 |
27.4 |
1900 |
1x185 |
37/2.52 |
1.6 |
1 |
1.6 |
1.8 |
30.0 |
2320 |
1x240 |
61/2.25 |
1.7 |
1 |
1.6 |
1.8 |
32.8 |
2930 |
1x300 |
61/2.52 |
1.8 |
1 |
1.6 |
1.9 |
35.6 |
3580 |
1x400 |
61/2.85 |
2.0 |
1.2 |
2.0 |
2.0 |
40.5 |
4600 |
1x500 |
61/3.20 |
2.2 |
1.2 |
2.0 |
2.1 |
44.2 |
5680 |
1x630 |
127/2.52 |
2.4 |
1.2 |
2.0 |
2.2 |
48.8 |
7160 |
1x800 |
127/2.85 |
2.6 |
1.4 |
2.5 |
2.4 |
55.4 |
9315 |
1x1000 |
127/3.20 |
2.8 |
1.4 |
2.5 |
2.5 |
60.6 |
11490 |
