BS 5467 Cables

BS 5467 Armoured Power Cables, 1900/3300V

      Three-core 1900/3300 V cables with stranded copper conductors

Application

These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground.

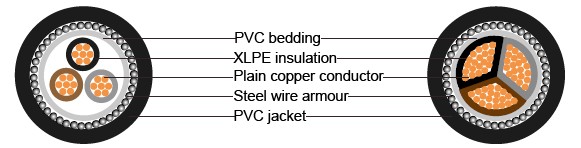

Construction

Conductor

Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.

Insulation Colour Code

XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6)
1 Core : Brown



3 Cores: Brown, Black, Grey

Bedding Armour Outer Sheath

PVC (Polyvinyl Chloride) Single Core: AWA (Aluminum Wire Armour) Multi Core: SWA (Steel Wire Armour) PVC(Polyvinyl Chloride)

Technical Information

Voltage rating 1900/3300V
Temperature rating 0°C to +90°C
Bending radius 1.5mm² to 16mm²: 6 x overall diameter
                          25mm² and above: 8 x overall diameter
Flame retardant IEC60332 part 1, BS4066 part 1

Nominal Cross-sectional Area

Strand Type

Nominal Insulation thickness

Nominal bedding
thickness

Nominal Steel Wire Armor dia.

Nominal Sheath thickness

Approx.Overall Diameter

AprroxWeight

mm²

No./mm

mm

mm

mm

mm

mm

kg/km

3x16

7/1.70

2

1

1.6

1.8

29.3

1600

3x25

7/2.14

2

1

1.6

1.8

32.2

2060

3x35

7/2.52

2

1

1.6

1.9

34.8

2400

3x35*

7/2.52

2

1

1.6

1.9

31.1

2400

3x50*

19/1.78

2

1.2

2

2

34.7

3200

3x70*

19/2.14

2

1.2

2

2.1

38

3800

3x95*

19/2.52

2

1.2

2

2.2

41.4

4730

3x120*

37/2.03

2

1.4

2.5

2.3

45.7

6070

3x150*

37/2.25

2

1.4

2.5

2.4

48.5

7010

3x185*

37/2.52

2

1.4

2.5

2.5

51.9

8270

3x240*

61/2.25

2

1.6

2.5

2.6

56.9

10310

3x300*

61/2.52

2

1.6

2.5

2.7

61.2

12300

3x400*

61/2.85

2

1.6

2.5

2.9

66.6

14500
