BS 6724 Cables
BS 6724 Armoured Power Cables, 600/1000V

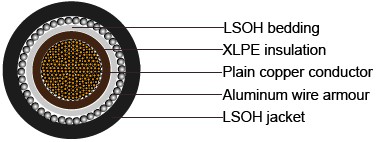

Single-core 600/1000 V cables with circular stranded copper conductor
Application
These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside
buildings or for direct burial in the ground. For installation where fire, smoke emission and toxic fumes
create a potential threat to life and equipment.
Construction
Conductor |
Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, |
|
IEC 60228. |
Insulation |
XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6) |
Colour Code |
1 Core : Brown |
|
2 Cores: Brown or Blue |
|
3 Cores: Brown, Black, Grey |
|
4 Cores: Blue, Brown, Black, Grey |
|
5 Cores: Green/Yellow, Blue, Brown, Black, Grey |
|
Above 5 Cores: White Cores with black numbers |
Bedding |
LSOH (Low Smoke Zero Halogen) |
Armour |
Single Core: AWA (Aluminum Wire Armour) |
|
Multi Core: SWA (Steel Wire Armour) |
Outer Sheath |
LSOH (Low Smoke Zero Halogen) |
Technical Information
Voltage rating 600/1000V
Temperature rating 0°C to +90°C
Bending radius 1.5mm² to 16mm²: 6 x overall diameter
25mm² and above: 8 x overall diameter
Flame retardant IEC60332 part 1, BS4066 part 1
Halogen free IEC 60754, EN 50267
Smoke density IEC 61034, EN50268
Single-core 600/1000 V cables with circular stranded copper conductor
Nominal Cross-sectional Area |
Strand Type |
Nominal Insulation Thickness |
Nominal BeddingThickness |
Nominal Alum Wire Armor dia. |
Nominal Sheath Thickness |
Approx.Overall Diameter |
AprroxWeight |
mm² |
No./mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
1x50 |
19/1.78 |
1.0 |
0.8 |
0.9 |
1.5 |
17.5 |
800 |
1x70 |
19/2.14 |
1.1 |
0.8 |
1.25 |
1.5 |
20.2 |
990 |
1x95 |
19/2.52 |
1.1 |
0.8 |
1.25 |
1.6 |
22.3 |
1280 |
1x120 |
37/2.03 |
1.2 |
0.8 |
1.25 |
1.6 |
24.2 |
1550 |
1x150 |
37/2.25 |
1.4 |
1 |
1.6 |
1.7 |
27.4 |
1900 |
1x185 |
37/2.52 |
1.6 |
1 |
1.6 |
1.8 |
30.0 |
2320 |
1x240 |
61/2.25 |
1.7 |
1 |
1.6 |
1.8 |
32.8 |
2930 |
1x300 |
61/2.52 |
1.8 |
1 |
1.6 |
1.9 |
35.6 |
3580 |
1x400 |
61/2.85 |
2.0 |
1.2 |
2.0 |
2.0 |
40.5 |
4600 |
1x500 |
61/3.20 |
2.2 |
1.2 |
2.0 |
2.1 |
44.2 |
5680 |
1x630 |
127/2.52 |
2.4 |
1.2 |
2.0 |
2.2 |
48.8 |
7160 |
1x800 |
127/2.85 |
2.6 |
1.4 |
2.5 |
2.4 |
55.4 |
9315 |
1x1000 |
127/3.20 |
2.8 |
1.4 |
2.5 |
2.5 |
60.6 |
11490 |
