Bus Cables

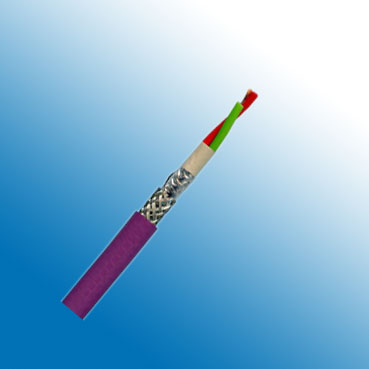

Profibus DP IEC 61158 / EN 50170 SINEC L2(Siemens Profibus)
Application:
Profibus DP cables are designed for field networks requiring fast, cyclic data exchange between controllers and field devices. This cable is usually reffered as siemens profibus. This Profibus modification optimized with respect to velocity and low installation cost, Profibus DP is used as a replacement for conventional parallel data transmission with 24 V or 0 - 20 mA.
Static cables
Construction:
| Type | Static cables |
| Inner Conductor | Plain copper |
| Inner Conductor Diameter | 0.64mm (22AWG) |
| Conductor Insulation | Foam with a hard skin |
| Conductor Colors | Red & green |
| Stranding Element | - |
| Shielding 1 | Synthetic bedding |
| Shielding 2 | Aluminium foil |
| Shielding 3 | Tinned copper wire braid – 60% optical coverage |
| Outer Jacket Material | PUR thermoplastic or thermosetting/ PVC/ PE/ LSHF |
| Outer Jacket Color | Violet/ Black |
Electrical Data:
Characteristic Impedance @ 3-20MHz |
150 Ω ± 10 Ω | |||
Conductor Resistance |
57.1 Ohm/km max. | |||
Test Voltage |
1.5KV | |||
Operate Voltage |
Max: 350V | |||
Effective capacitance @ 1khz |
28.5nF/km |
|||
Data Rate |
9.6 Kbit/s | 1200m | ||
| 19.2 Kbit/s | 1200m | |||
| 93.75 Kbit/s | 1200m | |||
| 187.5 Kbit/s | 1000m | |||
| 500 Kbit/s | 400m | |||
| 1.5 Mbit/s | 200m | |||
| 12.0 Mbit/s | 100m | |||
Attenuation: |
4MHz | 22dB/km | ||
| 9.6KHz | 2.5dB/km | |||
| 16MHz | 42dB/km | |||
Dynamic cables
Construction:
| Type | Dynamic cables |
| Inner Conductor: | Plain copper, 0.25mm² |
| Conductor Insulation | Foamed PE with a hard skin |
| Conductor Colors | Red & green |
| Stranding Element | Cores laid up with fillers |
| Core Wrapping | Polyester taped |
| Shielding 1 | Aluminium foil |
| Shielding 2 | Tinned copper wire braid – 60% optical coverage |
| Drain Wire | - |
| Outer Jacket Material | Polyurethane (PUR) sheath |
| Outer Jacket Color | Violet/ Black |
Electrical Data:
| Characteristic Impedance @ 3-20MHz | 150 Ω ± 10 Ω | ||
| Conductor Resistance | 84.0 Ohm/km max. | ||
| Test Voltage | 1.5KV | ||
| Working Voltage | Max: 350V | ||
| Effective capacitance @ 1khz | 28.5nF/km | ||
| Data Rate | 9.6 Kbit/s | 1200m | |
| 19.2 Kbit/s | 1200m | ||
| 93.75 Kbit/s | 1200m | ||
| 187.5 Kbit/s | 1000m | ||
| 500 Kbit/s | 400m | ||
| 1.5 Mbit/s | 200m | ||
| 12.0 Mbit/s | 100m | ||
| Attenuation | 4MHz | 25dB/km | |
| 9.6KHz | 3dB/km | ||
| 16MHz | 53dB/km | ||
Technical Data：
| Static | Dynamic | |
| Min. Bending Radius (Laying) | 12 x OD mm | 12 x OD mm |
| Operating Temp.Range, min. | -30 °C | -5 °C |
| Operating Temp.Range, max. | +70 °C | +70 °C |
