Coaxial Cables |  |
||||||||||
|
||||||||||||
|
||||||||||||

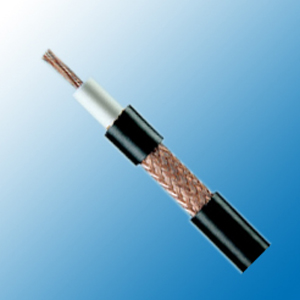

M17/74 - RG 213 (RG 213/U)
Construction
Inner conductor |
Plain copper |
7 x 0.75 mm |
Dielectric |
Low density PE |
Φ7.25 ± 0.18 mm |
Outer conductor |
Plain copper |
192 x 0.18 mm |
Shield coverage |
|
97% |
Sheath |
PVC or LSZH |
Φ10.3 ± 0.18 mm |
Electrical & Mechanical Characteristics
| Impedance | 50±3 Ohm0 | |
| Nominal capacitance | 100pF/m | |
| Velocity of propagation | 66% | |
| Insulation resistance | >2000 Mohm.Km | |
| Inner conductor resistance | 6.0 Ohm/Km | |
Outer conductor resistance |
4.5 Ohm/Km |
|
Test/Operatig Voltage(max) |
10KV/5KV |
|
Operating temperature range |
-30 °C - +70 °C |
|
Copper Weight |
76.9 Kg/Km |
|
Cable weight (approx.) |
163 Kg/Km |
|
Screening effectiveness |
100-900 MHz |
>55dB |
Attenuation
Frequency (MHz) |
Attenuation (dB/100 m) |
Attenuation (dB/100ft) |
| 50 | 4.5 |
1.37 |
100 |
6.7 |
2.04 |
200 |
9.9 |
3.02 |
400 |
14.3 | 4.36 |
500 |
16.1 |
4.91 |
600 |
17.8 |
5.43 |
860 |
22.1 |
6.74 |
1000 |
24.3 |
7.41 |
Return Loss
30-300 MHz |
>31dB |
300-600 MHz |
>28dB |
600-900 MHz |
>27dB |
