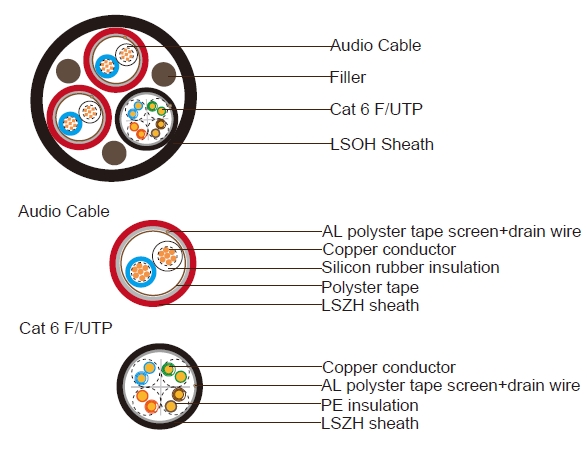

Composite Cables |
 |
|
|
|||
 |
|
 |
|
|
| Conductor | 1.5mm2 Stranded copper wire, class 5 to IEC60228. |
| Insulation | Fire resistant silicone rubber compound.Nominal thickness 0.8mm. |
| Insulation Color | White and blue. |
| Screen | Alumminum tape with tinned copper drain wire. |
| Sheath | LSZH sheath. Nominal thickness 1.0 mm. |
| Sheath Color | Red. |
| General Standard | Basic design to EN50288-7. |
Cat 6 F/UTP
| Conductor | 24 AWG stranded plain copper. |
| Insulation | PE material. Nominal diameter is 0.97mm. |
| Insulation Color | White-orange,Orange;White-blue,Blue; |
| White-green,Green;White-brown,Brown. | |
| Screen | Alumminum tape with tinned copper drain wire. |
| Sheath | LSZH sheath. Nominal overall diameter is 6.5 mm. |
| Sheath Color | Black or Grey or Blue. Other colors also available upon request. |
| Applications | IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; |
| IEEE 802.5 16 MB; ISDN; TPDDI; ATM. | |
| Standards | ISO/IEC 11801, IEC 61156-5,EN 50173,ANSI/TIA 568B. |
Element Assembly
| Filler | PP material . |
| Wrapping Tape | Polyester tape or woven tape. |
| Outer Sheath | High flexible LSZH. Nominal thickness 1.8mm. |
| Sheath Color | Black. Other colors also available upon request. |
Electrical and Physical Properties@20°C:
Audio Cable
Max.Electrical Resistance: 12.3Ohm/km
Min.
Insulation Resistance: 1000 MOhm/km
Operating Temperature: -20°C/+90°C
Voltage rating: 300/500V
Insulation spark test: 7000 V r.m.s./H.F.
Max. Attenuation: 0.88 dB/km @800HZ
Max. Inductance:0.75mH/km
Cat6 F/UTP (1-250MHz)
Max.Electrical Resistance: 93.8 Ohm/km
Min.Insulation Resistance: 2000 MOhm/km
Operating Temperature: -20°C/+70°C
Max.Resistance Unbalance: 5%
Max. Mutual Capacitance: 5.6nF/100m
Max. Capacitance Unbalance: 330pF/100m
Characteristic Impedance : 100 ± 15 (1-250MHz)
Nominal Velocity of Propagation: 69%
Max. Propagation Delay : 536ns/100m@100MHz
Max.Propagation Delay skew : 45ns/100m(1-125MHz)
Test voltage (DC, 1 min)
Core/Core : 1000V
Fire Performance:
Audio Cable
Fire Resistance : IEC60331
Flame Retardance : IEC60332-1-2
Fire Propagation : IEC60332-3-22
Halogen Free:IEC60754-1/2
Low Smoke Capacity:IEC61034-1/2
Oxygen Index :ISO 4589-2
Temperature Index :ISO 4589-3
Cat6 F/UTP
Flame Retardance : IEC60332-1-2
Fire Propagation : IEC60332-3-22
Halogen Free:IEC60754-1/2
Low Smoke Capacity:IEC61034-1/2
Oxygen Index :ISO 4589-2
Temperature Index :ISO 4589-3
Element Assembly
Flame Retardance : IEC60332-1-2
Fire Propagation : IEC60332-3-22
Halogen Free:IEC60754-1/2
Low Smoke Capacity:IEC61034-1/2
Oxygen Index :ISO 4589-2
Temperature Index :ISO 4589-3
