1x2x2.5mm² Power Cable +9x1x2x1.0mm² Control Cable SWA PVC Sheathed Composite Cable

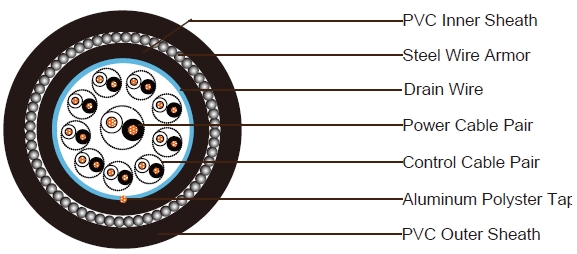

Construction:

1x2x2.5mm² Power Cable +9x1x2x1.0mm² Control Cable SWA PVC Sheathed Composite Cable

1x2x2.5mm² Power Cable

Conductor 2.5mm² annealed copper
Insulation XLPE material.
Insulation Color Black and white

9x1x2x1.0mm² Control Cable

Conductor 1.0mm² annealed copper
Insulation PE material.
Insulation Color Black and white with pair number
Overall Screen Aluminium polyester tape with 24 AWG stranded tinned copper drain wire

Element Assembly

Shield Aluminium polyester tape
Drain Wire 24 AWG stranded tinned copper drain wire
Bedding PVC
Armour 1.6mm Steel wire armor.
Sheath PVC sheath. Nominal outer diameter 31.0mm. Thickness 2.0mm
Sheath Color Black
Cable Weight 1415 kg/km

Electrical and Physical Properties @20°C:

Power Cable

Max. Conductor Resistance: 7.41Ohm/km at 20ºC

Control Cable

Max. Conductor Resistance: 18.5Ohm/km at 20ºC

Operating Temperature: -20°C/+90°C

Voltage Rating: 600/1000V
