Composite Cables |
 |
|
|
|||
 |
|
 |
|
|
| Conductor | 2.5mm² annealed copper |
| Insulation | XLPE material. |
| Insulation Color | Black and white |
9x1x2x1.0mm² Control Cable
| Conductor | 1.0mm² annealed copper |
| Insulation | PE material. |
| Insulation Color | Black and white with pair number |

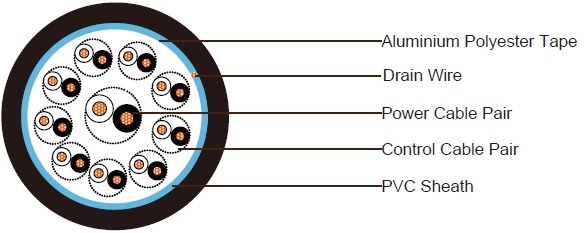

Element Assembly
| Shield | Aluminium polyester tape |
| Drain Wire | 24 AWG stranded tinned copper drain wire |
| Sheath | PVC sheath. Nominal outer diameter 25.5mm. Thickness 1.8mm |
| Sheath Color | Black |
| Cable Weight | 477 kg/km |
Electrical and Physical Properties @20°C:
Power Cable
Max. Conductor Resistance: 7.41Ohm/km at 20ºC
Control Cable
Max. Conductor Resistance: 18.5Ohm/km at 20ºC
Operating Temperature: -20°C/+90°C
Voltage Rating: 600/1000V
