Composite Cables |
 |
|
|
|||
 |
|
 |
|
|
| Conductor | Stranded annealed tinned copper wire, 30AWG(7/38AWG) |
| Insulation | FoamPE+Skin. Thickness 0.505mm. Outer diameter 1.3+0.07mm |
| Shield | Tinned copper braid, 0.1mm, 90% coverage |
| Sheath | PVC, Thickness 0.219mm. Outer diameter 2.15mm |
| Sheath Color | Green/Blue/Red |
Element 2: 4PRx28AWG(7/36AWG) Stranded TC/Foam PE+Skin
| Conductor | Stranded annealed tinned copper wire, 7/36AWG |
| Insulation | FoamPE+Skin. Thickness 0.25mm. Outer diameter 0.98+0.05mm |
| Insulation Color | Yellow and orange |
| Individual Shield | Aluminum/ mylar laminated tape applied with the metallic side down in electrical contact with a 28AWG tinned copper drain wire (7 strands formation). A 23 micron mylar tape is applied over the screening tape with a minimum 25% overlap. |
Element 3: 1P+5Cx28AWG(7/36AWG) Stranded TC/PE
| Conductor | Stranded annealed tinned copper wire, 7/36AWG |
| Insulation | High density polyethylene. Thickness 0.12mm. Outer diameter 0.7+0.05mm |
| Insulation Color | Black/Brown/Red/Green/White |

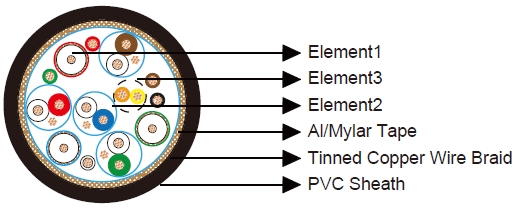

Element Assembly
| Overall Screen | Aluminum/ mylar tape |
| Braid Shield | Braid of tinned copper wire. 24x9x0.12mm |
| Outer Sheath | LSFROH elastomeric sheath,Thickness 0.51mm. Outer diameter 8.5 +0.2mm, other materail is optional |
| Sheath Color | Black or as per the client’s requirement |
Physical Properties:
Temperature rating: -25°C to +80°C
Minimum bending radius:3 x Overall Diameter
Electrical Properties:
Rated voltage: 30V
Max conductor resistance at 20°C: 28AWG ≤237 Ohm/Km
30AWG ≤376 Ohm/Km Min insulation resistance: ≥100M Ohm/m
Nom. differential impedance: Pairs 100+15 Ohm
Coaxial 75 Ohm
Fire Performance in General:
Vertical flame propagation for a single insulated wire or cable
EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)
Vertical flame spread of vertically mounted bunched wires or cables
EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804
Low Smoke Emission
EN 50268-2; IEC 61034-2; NF C 32-073 ;NF C 20-902; NF F 16 101; VDE 0472 Teil 816
Halogen Free
EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815
Low Corrosivity (Acidity & Conductivity)
EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813
Low Toxicity
EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853
Smoke Index
NF F 63 808; BS6853; NF F 16 101
Fire Performance Relating to Rolling Stock Application:
DIN 5510-2
BS 6853
NF F16 101
NF F 63 808
