 Composite Cables
Power Cable+RS 485+Belden 9104+Fiber Optic Cable Aluminium Wire Braid Armored Composite Cable
Construction:
3x12AWG Power Cable
| Conductor |
12AWG (19/0.455mm stranded copper wire |
| Insulation |
XLPE compound. Nominal outer diameter 3.75mm |
| Insulation Color |
Blue, Brown and Green/Yellow |
2 Pair 24AWG RS485
| Conductor |
24AWG (7/0.2mm stranded copper to IEC228 Class 2 |
| Insulation |
PE material. Thickness 0.8mm |
| Shield |
Aluminium polyester tape with 24 AWG stranded tinned copper drain wire |
| Braid |
Copper wire braiding |
| Sheath |
LSZH sheath. Nominal outer diameter is 9.0mm |
| Sheath Color |
Black |
Belden 9104 RG59 Coaxial Cable
| Conductor |
20AWG bare copper covered steel wire |
| Insulation |
Foam high density polyethylene. Norminal outer diameter 3.66mm |
| Shield |
Aluminium foil with 100% coverage |
| Braid |
Aluminium wire braiding with 67% coverage |
| Sheath |
PVC sheath. Norminal outer diameter 6.02mm |
| Sheath Color |
Black |
4 Core Central Loose Tube Fiber Optic Cable
| Optical Fiber |
Multi-mode cabled fibers meet or exceed the requirements of ITUT G.651 specification |
| Loose Tube |
PBT tubes1.80±0.1mm outer diameter, contains 4 fibers.
The tubes are filled with a thixotropic gel to prevent the ingress of water |
| Aramid Yarn |
Aramid Yarn is laid over the tube core to serve as peripheral strength member |
| Sheath |
LSZH outer Sheathis extruded over the glass yarn. Nominal outer diameter is about 3.40mm |
| Sheath Color |
Black |

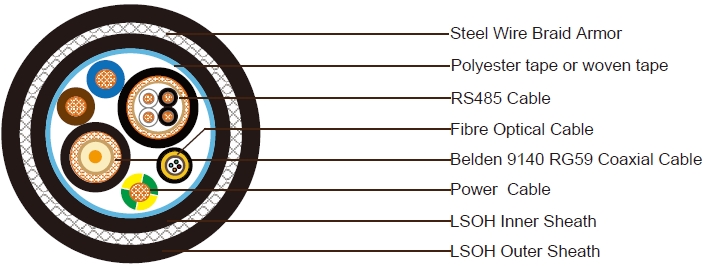

Element Assembly
| Wrapping Tape |
Polyester tape or woven tape |
| Inner Jacket |
Black LSZH, thickness 1.20mm |
| Armor |
Steel wire braid, coverage 80% |
| Sheath |
LSZH, thickness 1.80mm, nominal outer diameter 22.0±2.0mm |
| Sheath Color |
Black |
Optical Characteristics
Optical Fiber
The Multi-mode fibers meet the ITU G.651 specification, as listed below:
| Property |
50/125 fibers |
62.5/125 fibers |
| Attenuation @ 850 nm (dB/km) |
≤3.0 |
≤3.2 |
| Attenuation @ 1300 nm (dB/km) |
≤1.0 |
≤1.2 |
| Added Attenuation with Bending |
≤0.5 dB (850 and 1300 nm for 100 turns around a 75 mm mandrel |
| Numerical Aperture |
0.20 ±0.02 |
0.275±0.015 |
| Bandwidth @ 850 nm |
400 MHz*km |
160 MHz*km |
| Bandwidth @ 1300 nm |
800 MHz*km |
500 MHz*km |
| Core diameter |
50±3μm |
62.5 ±3μm |
| Cladding diameter |
125±2μm |
| Core-Claddingoffset |
≤6% |
| Cladding non-circularity |
≤2% |
| Core non-circularity |
≤6% |
| Coating diameter |
mm245±10 |
| Coating / Cladding offset |
12μm |
| Proof Test |
≥0.69 GN/m2 (100 kpsi) |
The fibers contain no splices. |
