1xRG11 + 3x3 Power Cable + 2x1x2x24AWG Data Pairs SWA LSZH Sheathed Composite Cable

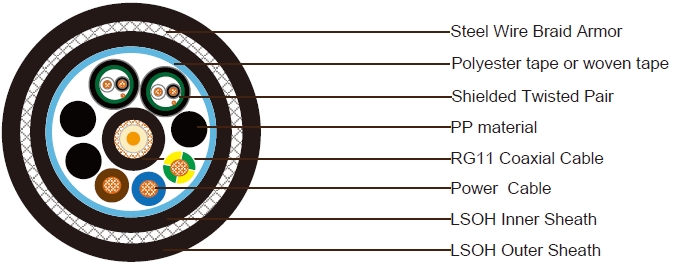

Construction:

1xRG11 + 3x3 Power Cable + 2x1x2x24AWG Data Pairs SWA LSZH Sheathed Composite Cable

1x75Ohm RG11 Coaxial Cable( in the center of the cable core)

Conductor 1.63mm Solid bare copper
Insulation Polyethylene.Thickness 7.25mm.
Shield Braidofbare copperwire.Coverage95%
Sheath LSZH sheath. Nominalouterdiameteris10.3mm.
Sheath Color Black

2x1x2x24AWG Shielded Twisted Pair ( around coaxial cable)

Conductor 7/0.2mm Strandedtinnedcopper.
Insulation PVCmaterial.Thickness 0.47mm.
Insulation Color White andblack
Individual Shield Aluminum polyester tape
Drain Wire 24AWGstrandedtinnedcopper
Sheath LSZHsheath.Nominal outer diameter 4.8mm.Thickness0.76mm.
Sheath Color BlackandGrey

3x3mm²Power Cable ( around coaxial cable)

Conductor 12AWG(3mm²Strandedtinnedcopper wire.
Insulation XLPE.Thickness0.85mm.Outerdiameter3.65mm
Insulation Color Blue,Brown and Green/Yellow

ElementAssembly

Filler PPmaterial(aroundcoaxialcable)
WrappingTape Polyestertape.
Inner Sheath BlackLSZH,thickness0.8mm
Armor Stainlesssteel wirebraid, coverage 85%
Outer Sheath LSZH,thickness1.5mm,nominalouterdiameter26.0mm
Sheath Color Black

Electrical and Physical Properties@20°C:

Coaxial Cable

Impedance: 75±3Ohm (@1MHz)

Max.Attenuation:3.3dB/100m@50MHz

Power Cable

ElectricalResistance:6.6Ohm/km

Insulation Resistance: ≥5500 MOhmxkm Data Pairs

Electrical Resistance: 90Ohm/km

Insulation Resistance: ≥1000 MOhmxkm

ElementAssembly

Min Bending Radius:420mm

Operating Temperature:-35°C/+80°C

Fire Performance:

Flame Propagation:IEC60332-1 Low Smoke Capacity:IEC61034-1/2 Halogen Free:IEC60754-1/2
