1x RG11 + 3x2.5 Power Cable + 4x1x2x24AWG Data Pairs SWA LSZH Sheathed Composite Cable

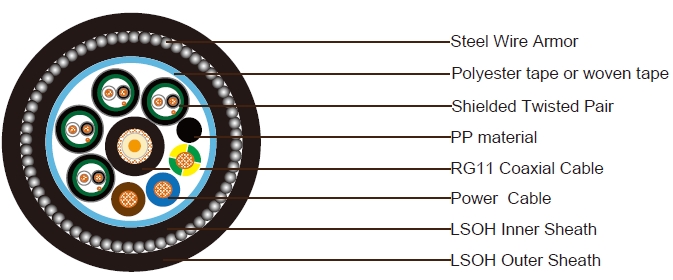

Construction:

1x RG11 + 3x2.5 Power Cable + 4x1x2x24AWG Data Pairs SWA LSZH Sheathed Composite Cable

1x75Ohm RG11 Coaxial Cable ( in the center of the cable core)

Conductor 1.63mm Solid bare copper
Insulation Polyethylene. Diameter 7.25mm.
Shield Braid of bare copper wire. Coverage 95%
Sheath LSZH sheath. Nominal outer diameter is 10.3mm.
Sheath Color Black

4x1x2x24AWG Shielded Twisted Pair data cable ( around coaxial cable)

Conductor 7/0.2mm Stranded tinned copper.
Insulation PVC material. Thickness 0.5mm.
Insulation Color White and black
Individual Shield Aluminum polyester tape
Drain Wire 24 AWG stranded tinned copper
Sheath LSZH sheath. Thickness 0.80mm.
Sheath Color Black with white number code

3x2.5mm² Power Cable ( around coaxial cable)

Conductor 2.5mm² Stranded tinned copper wire.
Insulation XLPE. Outer diameter 3.41mm
Insulation Color Blue, Brown and Green/Yellow

Element Assembly

Filler PP material (around coaxial cable)
Wrapping Tape Polyester tape or woven tape
Inner Sheath Black LSZH, thickness 1.1mm
Armor Steel wire armor,dia. 1.25mm
Outer Sheath LSZH, thickness 1.8mm, nominal outer diameter 26.0±1.0mm
Sheath Color Black
Cable Weight 1100kg/km

Electrical and Physical Properties@20°C:

Coaxial Cable

Impedance: 75±3Ohm (@1MHz)

Max. Attenuation: 3.3dB/100m @50MHz

Power Cable

Electrical Resistance: 7.41Ohm/km

Insulation Resistance: ≥5500 MOhmxkm Data Pairs

Electrical Resistance: 90Ohm/km

Insulation Resistance: ≥1000 MOhmxkm

Element Assembly

Conductor DC resistance per km@20°C:

24AWG: 95.8ohm/km 2.5mm²: 7.4ohm/km 1.63mm: 9.26ohm/km

Minimum Bending Radius: 312mm

Temperature Range: -10°C~70°C

Fire Performance:

Flame Propagation: IEC60332-1

Low Smoke Capacity:IEC61034-1/2

Halogen Free:IEC60754-1/2
