Composite Cables

1x RG11 + 3x2.5 Power Cable + 3x1x2x22AWG Data Pairs Unarmoured PVC Sheathed Composite Cable

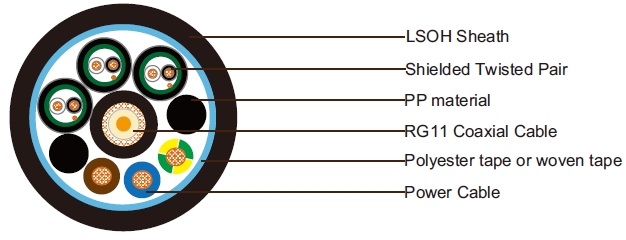

Construction:

1x RG11 + 3x2.5 Power Cable + 3x1x2x22AWG Data Pairs Unarmoured PVC Sheathed Composite Cable

1x75Ohm RG11 Coaxial Cable ( in the center of the cable core)

Conductor	1.63mm Solid bare copper
Insulation	Polyethylene.Thickness 7.25mm.
Shield	Braidofbare copperwire.Coverage95%
Sheath	LSZH sheath. Nominalouterdiameteris10.3mm.
Sheath Color	Black

3x1x2x22AWG Shielded Twisted Pair ( around coaxial cable)

Conductor	7/0.254mm Strandedtinnedcopper.
Insulation	PVCmaterial.Thickness 0.50mm.
Insulation Color	White andblack
Individual Shield	Aluminum polyester tape
Drain Wire	24AWGstrandedtinnedcopper
Sheath	PVCsheath.Nominal outer diameter 4.8mm.Thickness0.76mm.
Sheath Color	Black withwhitenumber code

3x2.5mm² Power Cable ( around coaxial cable)

Conductor	2.5mm² Strandedtinnedcopper wire.
Insulation	XLPE.Outerdiameter3.41mm
Insulation Color	Blue,Brown and Green/Yellow

ElementAssembly

Filler	PPmaterial(aroundcoaxialcable)
WrappingTape	Polyestertape orwoven tape
Outer Sheath	PVC,thickness1.6mm,nominalouterdiameter25.0mm
Sheath Color	Black
Cable weight	480kg/km

Electrical and Physical Properties@20°C:

Coaxial Cable

Impedance: 75±3Ohm (@1MHz)
Max.Attenuation:3.3dB/100m @50MHz

Power Cable

Electrical Resistance: 7.41Ohm/km
Insulation Resistance: ≥5500 MOhmxkm

Data Pairs

Electrical Resistance: 49Ohm/km
Insulation Resistance: ≥1000 MOhmxkm
