1x RG179 3x1.5mm² Power Cable+2x1x2x24 AWG Data Pairs SWB LSZH Sheathed Composite Cable

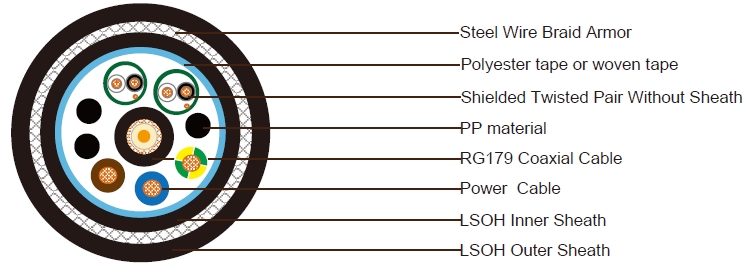

Construction:

1x75Ohm RG179 Coaxial Cable

Conductor 7/0.1mm Sliver plated copper conductor
Insulation Solid PTFE. Diameter: 1.6mm
Shield Braid of silver plated copper wire. Coverage ≥ 95%
Sheath FEP sheath. Nominal outer diameter 2.5mm
Sheath Color Black

2x1x2x24AWG Shielded Twisted Pair

Conductor 7/0.2mm Stranded tinned copper
Insulation PVC material. Thickness 0.4mm
Insulation Color Black and white with pair number
Shield Aluminium polyester tape with 24 AWG stranded tinned copper drain wire. Nominal outer diameter 3.5mm

3x1.5mm² Power Cable

Conductor 1.5mm² Stranded tinned copper wire
Insulation XLPE. Nominal outer diameter 3.0mm
Insultion Color Blue, Brown and Green/Yellow

Element Assembly

Filler PE or PP material
Wrapping Tape Polyester tape or woven tape
Inner Sheath Black LSZH, thickness 0.8mm. Diameter Over Bedding: 11.2mm±0.8mm
Armor Steel wire braid,coverage 85%
Outer Sheath LSZH, thickness 1.5mm, nominal outer diameter is15.8±2.0mm
Sheath Color Black

Electrical and Physical Properties @20°C:

Coaxial Cable

Impedance: 75±5Ohm (@1MHz)

Nominal capacitance: 63pF/m

Max. Attenuation: 28dB/100m @50MHz

Power Cable

Electrical Resistance: 12.1Ohm/km

Insulation Resistance: ≥5500 MOhmxkm Data Pairs

Electrical Resistance: 90Ohm/km

Insulation Resistance: ≥1000 MOhmxkm

Physical Characteristic:

Min Bending Radius: 420mm

Operating Temperature: -35°C/+80°C

Fire Performance:

Low Smoke Capacity:IEC61034-1/2

Halogen Free:IEC60754-1/2

Flame Propagation: IEC60332
