1x RG59 + 3x2.5 Power Cable + 2x1x2x24AWG RS485 SWB PVC Sheathed Composite Cable

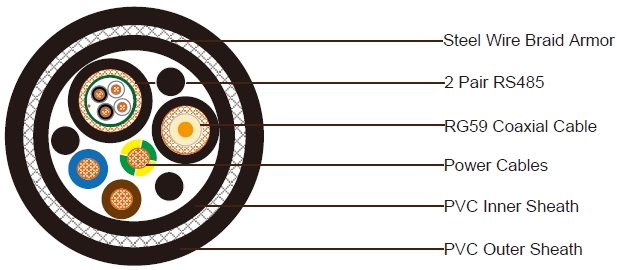

Construction:

1x RG59 + 3x2.5 Power Cable + 2x1x2x24AWG RS485 SWB PVC Sheathed Composite Cable

1x75Ohm RG59 Coaxial Cable

Conductor 0.58mm Solid copper conductor
Insulation Polyethylene. Thickness 1.56mm
Shield Braid of bare copper wire. Coverage ≥ 85%
Sheath PVC sheath. Nominal outer diameter 6.2mm
Sheath Color Black

2 Pair 24AWG RS485

Conductor 7/0.2mm Stranded tinned copper
Insulation PE material. Thickness 0.6mm
Shield 1 Aluminium polyester tape with 24 AWG stranded tinned copper drain wire
Shield 2 Tinned copper wire braiding
Sheath PVC sheath. Nominal outer diameter is 9.0mm
Sheath Color Black

3x2.5mm² Power Cable

Conductor 2.5mm² Stranded tinned copper wire
Insulation PVC. Thickness 0.7mm
Insultion Color Blue, Brown and Green/Yellow

Element Assembly

Inner Sheath Black PVC, thickness 0.8mm
Armor Steel wire braid,coverage 95%
Outer Sheath PVC, thickness 1.8mm, nominal outer diameter is 26.0mm
Sheath Color Black

Electrical and Physical Properties @20°C:

Coaxial Cable

Impedance: 75±3Ohm (@1MHz)

Nominal Attenuation: 8.2dB/100m @50MHz

RS485

Nominal Impedance: 120±10Ω

Nominal Conductor DC Resistance @20°C: 78.7 Ohm/km

Nominal Attenuation: 1MHz 2.3dB/100m

Power Cable

Electrical Resistance: 7.56Ohm/km
