RG59 + 3x2.5 Power cable + 2x2x24AWG RS485 + 1x2x18AWG Audio Cable SWB LSZH Sheathed Composite Cable

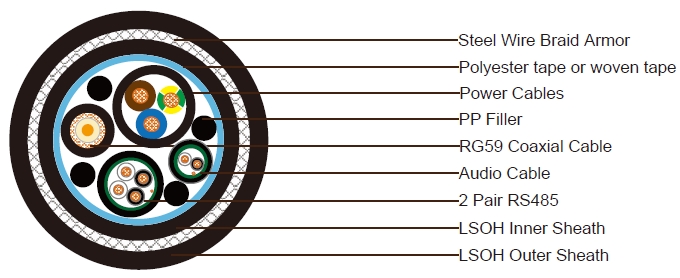

Construction:

RG59 + 3x2.5 Power cable + 2x2x24AWG RS485 + 1x2x18AWG Audio Cable SWB LSZH Sheathed Composite Cable

75Ohm RG59 Coaxial Cable

Conductor 0.81mm Copper Covered Steel Wire
Insulation Polyethylene. Diameter 3.65mm
Shield Bonded Al screen and braid of Al-Mg wire. Coverage:80%
Sheath LSZH sheath. Nominal outer diameter is 6.1mm
Sheath Color Black

24AWG RS485

Conductor 24AWG (7/0.2mm Stranded tinned copper to IEC 60228 Class 2 2 pairs
Insulation Polyethylene. Thickness 0.6mm
Shield Aluminium polyester tape
Drain Wire 24 AWG stranded tinned copper drain wire
Sheath LSZH sheath. Nominal outer diameter is 9.0mm
Sheath Color Black

3x2.5mm² Power Cable

Conductor 2.5mm² Stranded tinned copper wire to IEC 60228 Class 2
Insulation XLPE. Thickness 0.7mm
Sheath LSZH sheath. Nominal outer diameter is 12.0mm
Sheath Color Black

18AWG Audio Cable

Conductor 1 pair 18AWG (16/0.254mm Stranded tinned copper
Insulation Polyethylene
Shield Aluminium polyester tape
Drain Wire 24 AWG stranded tinned copper drain wire
Sheath LSZH sheath. Nominal outer diameter is 6.5mm
Sheath Color Black

Element Assembly

Filler PP, PVC or PE
Wrapping Tape Polyester tape
Inner Sheath Black LSZH, thickness 0.8-1.0mm
Armor Steel wire braid,coverage 95%
Outer Sheath LSZH, thickness 1.6- 1.8mm, nominal outer diameter is 24±2mm
Sheath Color Black
Cable Weight 730kg/km

Electrical and Physical Properties @20°C:

Coaxial Cable

Impedance: 75±3Ohm (@1MHz)

Nominal Attenuation: 6.72dB/100m @50MHz

RS485

Nominal Impedance: 120±10Ω

Nominal Conductor DC Resistance @20°C: 78.7 Ohm/km

Nominal Attenuation: 1MHz 2.3dB/100m

Power Cable

Electrical Resistance: 7.41Ohm/km Insulation Resistance: ≥5500 MOhmxkm Audio Cable

Electrical Resistance: 18.1Ohm/km

Insulation Resistance: ≥1.1 MOhm .km

Element Assembly

Min Bending Radius: 360mm

Operating Temperature: -35°C/+90°C

Fire Performance:

Low Smoke Capacity:IEC61034-1/2

Halogen Free:IEC60754-1/2

Flame Propagation: IEC60332
