Composite Cables |
 |
|
|
|||
 |
|
 |
|
|
| Conductor | 0.58mm Solid copper conductor |
| Insulation | Polyethylene. Thickness 1.56mm |
| Shield | Braid of bare copper wire. Coverage ≥ 95% |
| Sheath | LSZH SHF1)sheath. Norminal outer diameter 6.2mm |
| Sheath Color | Black |
4 core 62.5/125 Multi Loose Tube Type Fiber Cable
| Fibers | 4Cx62.5/125 |
| Central Member | Galvanized steel wire |
| Sheath | Nominal outer diameter 9.6mm |
| Sheath Color | Black |
2x1x2x24 AWG Shielded Twisted Pair ( around coaxial cable)
| Conductor | 7/0.2mm Stranded tinned copper |
| Insulation | PVC material. Thickness 0.47mm |
| Insulation Color | Black and white with pair number |
| Shield | Aluminium polyester tape with 0.5mm² stranded tinned copper drain wire. Nominal outer diameter 3.5mm |
| Sheath | LSZH (SHF1) sheath. Norminal outer diameter 5.2mm |
3x2.5mm² Power Cable
| Conductor | 2.5mm² Stranded tinned copper wire |
| Insulation | XLPE. Thickness 0.85mm. Outer diameter 3.6mm |
| Insultion Color | Blue, Brown and Green/Yellow |

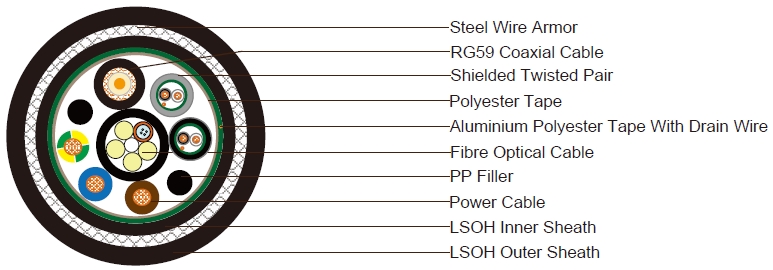

Element Assembly
| Filler | PP material around cable core |
| Wrapping Tape | Polyester tape |
| Shield | Aluminium polyester tape with 0.5mm² tinned copper drain wire |
| Inner Sheath | Black LSZH (SHF1) , thickness 1.0-1.2mm |
| Armor | Steel wire braid,coverage 85% |
| Outer Sheath | LSZH (SHF1), thickness 1.8-2.0mm. norminal outer diameter 28.5mm |
| Sheath Color | Black |
