Composite Cables |
 |
|
|
|||
 |
|
 |
|
|
| Conductor | 0.58mm Solid copper conductor |
| Insulation | Polyethylene. Thickness 1.56mm |
| Shield | Braid of bare copper wire. Coverage ≥ 95% |
| Sheath | PVC sheath. Nominal outer diameter 6.2mm |
| Sheath Color | Black |
7x1x2x22 AWG Shielded Twisted Pair ( around coaxial cable)
| Conductor | 7/0.254mm Stranded tinned copper |
| Insulation | PE material. Thickness 0.6mm |
| Insulation Color | Black and white |
| Shield | Aluminium polyester tape |
| Drain Wire | 24 AWG stranded tinned copper drain wire |
3x16AWG Power Cable ( around coaxial cable)
| Conductor | 19/0.287mm Stranded tinned copper wire |
| Insulation | XLPE. Thickness 0.7mm |

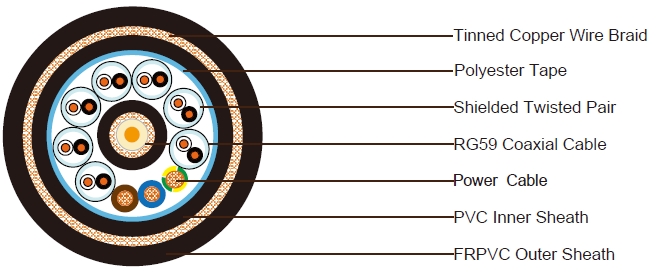

Element Assembly
| Filler | PP material if necessary |
| Wrapping Tape | Polyester tape |
| Shield | Tinned copper wire braid, coverage 80% |
| Outer Sheath | UV resisting FRPVC, thickness 1.8mm, norminal outer diameter 25.0mm |
| Sheath Color | Black |
| Cable Weight | 850kg/km |
Electrical and Physical Properties @20°C:
Coaxial Cable
Impedance: 75±3Ohm (@1MHz)
Max. Attenuation: 7.5dB/100m @50MHz
Power Cable
Electrical Resistance: 6.6Ohm/km
Insulation Resistance: ≥5500 MOhmxkm Data Pairs
Electrical Resistance: 90Ohm/km
Insulation Resistance: ≥1000 MOhmxkm
Element Assembly
Min Bending Radius: 420mm
Operating Temperature: -35°C/+80°C
Fire Performance:
Flame Propagation: IEC60332-1
Low Smoke Capacity:IEC61034-1/2
Halogen Free:IEC60754-1/2
