1x RG59 +2x1x2x22AWG Data Cable Unarmored LSZH Sheathed Composite Cable

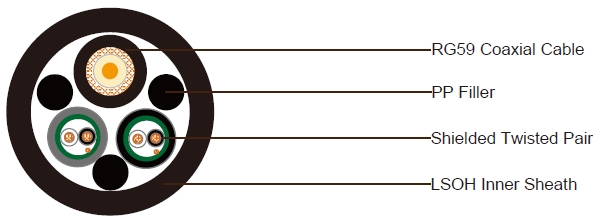

Construction:

1x RG59 +2x1x2x22AWG Data Cable Unarmored LSZH Sheathed Composite Cable

1x75Ohm RG59 Coaxial Cable

Conductor 0.58mm Solid copper conductor
Insulation Polyethylene. Thickness 1.56mm
Shield Braid of bare copper wire. Coverage ≥ 85%
Sheath LSZH sheath. Nominal outer diameter 6.2mm
Sheath Color Black

2 Pair 22AWG Data Cable

Conductor 7/0.254mm Stranded tinned copper
Insulation PE material. Thickness 0.4mm
Insulation Color Black and white
Shield Aluminium polyester tape
Drain Wire 7/0.2mm stranded tinned copper drain wire
Sheath LSZH sheath. Nominal outer diameter 4.8mm.
Sheath Color Black

Element Assembly

Outer Sheath LSZH, thickness 1.6- 1.8mm, nominal outer diameter is 15.6mm
Sheath Color Black

Electrical and Physical Properties @20°C:

Coaxial Cable

Impedance: 75±3Ohm (@1MHz)

Nominal Attenuation: 8.2dB/100m @50MHz

Data Cable

Nominal Conductor Resistance @20°C: 48.4 Ohm/km

Fire Performance:

Flame Propagation: IEC60332

Low Smoke Capacity:IEC61034-1/2

Halogen Free: IEC60754-1/2
