Composite Cables |
 |
|
|
|||
 |
|
 |
|
|
| Conductor | 0.58mm Solid copper conductor |
| Insulation | Polyethylene. Thickness 1.56mm |
| Shield | Braid of bare copper wire. Coverage ≥ 95% |
| Sheath | LSZH sheath. Nominal outer diameter 6.15mm |
| Sheath Color | Black |
2x1x2x24 AWG Shielded Control Cable
| Conductor | 7/0.2mm Stranded tinned copper |
| Insulation | PVC material. Thickness 0.4mm |
| Insulation Color | White and black |
| Shield | Aluminium polyester tape with 24 AWG stranded tinned copper drain wire |
| Sheath | LSZH sheath. Nominal outer diameter 4.8mm. Thickness: 0.76mm |
| Sheath Color | Black and Grey |
3x3mm² Power Cable
| Conductor | 3mm² Stranded tinned copper wire to IEC 60228 Class 2 or BS 6360 |
| Insulation | XLPE, Thickness 0.66mm. Outer diameter 3.63mm |
| Insultion Color | Blue, Brown and Green/Yellow |

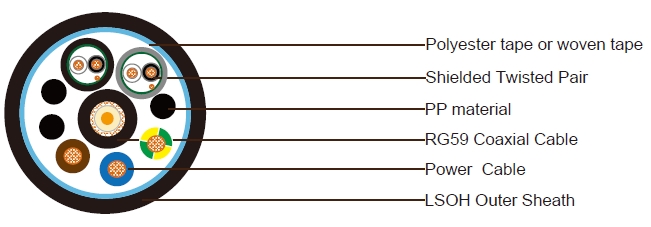

Element Assembly
| Filler | PP, PVC or PE |
| Wrapping Tape | Polyester tape |
| Outer Sheath | LSZH, thickness 1.2mm, nominal outer diameter is 18.5mm |
| Sheath Color | Black |
Physical Characteristic:
Min Bending Radius: 200mm
Operating Temperature: -35°C/+90°C
Fire Performance:
Flame Retardant: IEC60332 part 1 & 2
