1x RG59 + 3x2.5 Power Cable + 2x1x2x24AWG Data Pairs SWB LSZH Sheathed Fire Resistant & Mud Resistant Composite Cable

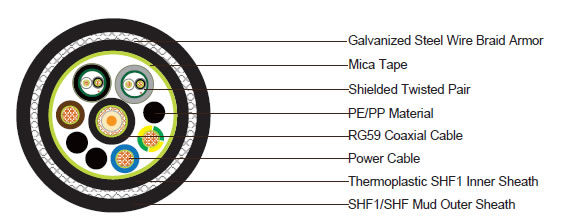

Construction:

1x RG59 + 3x2.5 Power Cable + 2x1x2x24AWG Data Pairs SWB LSZH Sheathed Fire Resistant & Mud Resistant Composite Cable

1x75Ohm RG59 Coaxial Cable

Conductor 0.58mm Solid copper conductor
Insulation Polyethylene. Thickness 1.56mm
Shield Braid of bare copper wire. Coverage ≥ 95%
Fire Barrier Mica tape
Sheath FRLSZH sheath. Nominal outer diameter 6.7mm
Sheath Color Black

2x1x2x24AWG Shielded Twisted Pair (around coaxial cable)

Conductor 7/0.2mm Stranded tinned copper
Insulation XLPE. Thickness 0.7mm
Fire Barrier Mica tape
Insulation Color Black and white
Shield Aluminium polyester tape
Drain Wire 24 AWG stranded tinned copper drain wire
Sheath FRLSZH sheath. Nominal outer diameter 8.5mm. Thickness 0.8mm
Sheath Color Black

3x2.5mm² Power Cable( around coaxial cable)

Conductor 2.5mm² Stranded tinned copper wire
Fire Barrier Mica tape
Insulation XLPE. Nominal outer diameter 4.2mm
Insultion Color Blue, Brown and Green/Yellow

Element Assembly

Inner Sheath PE or PP material
Fire Barrier Mica tape
Inner Sheath Thermoplastic SHF1, black, thickness 1.5mm
Armor Galvanized steel wire braid, coverage 95%
Outer Sheath SHF1/SHF Mud, thickness 1.5mm, nominal outer diameter 31.0±2.0mm
Sheath Color Black

Electrical and Physical Properties @20°C:

Coaxial Cable

Impedance: 75±3Ohm (@1MHz)

Max. Attenuation: 7.5dB/100m @50MHz

Power Cable

Electrical Resistance: 12.1Ohm/km

Insulation Resistance: ≥5500 MOhmxkm

Data Pairs

Electrical Resistance: 90Ohm/km

Insulation Resistance:≥1000 MOhmxkm

Element Assembly:

Min Bending Radius: 420mm

Operating Temperature:-30°C/+80°C

Fire Performance:

Low Smoke Capacity: IEC61034-1/2

Halogen Free: IEC60754-1/2

Flame Propagation:IEC60332

Fire Resistant:IEC60331

Mud Resistant:NEK606
