1xRG6 + 3x2.5 Power cable + 2x1x2x22AWG Data Pairs SWB LSZH Sheathed Composite Cable

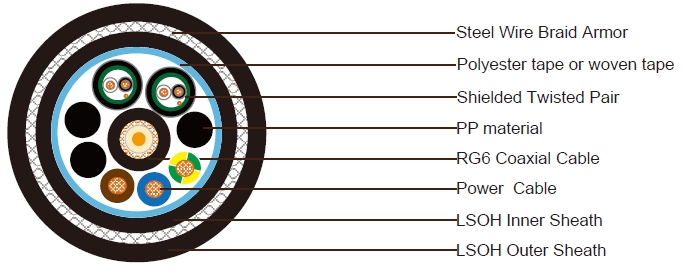

Construction:

1xRG6 + 3x2.5 Power cable + 2x1x2x22AWG Data Pairs SWB LSZH Sheathed Composite Cable

1x75Ohm RG6 Coaxial Cable ( in the center of the cable core)

Conductor 1.02mm Solid bare copper
Insulation Polyethylene. Diameter 4.57mm.
Shield 1 Al-Polyester Tape
Shield 2 Braid of bare copper wire. Coverage:95%
Sheath LSZH sheath. Nominal outer diameter is 6.91mm.
Sheath Color Black

2x1x2x22AWG Shielded Twisted Pair ( around coaxial cable)

Conductor 7/0.254mm Stranded tinned copper.
Insulation PVC material. Thickness 0.50mm.
Insulation Color White and black
Individual Shield Aluminum polyester tape
Drain Wire 24 AWG stranded tinned copper
Sheath LSZH sheath. Thickness 0.5mm.
Sheath Color Black with white number code

3x2.5mm² Power Cable ( around coaxial cable)

Conductor 2.5mm² Stranded tinned copper wire.
Insulation XLPE. Outer diameter 3.6mm
Insulation Color Blue, Brown and Green/Yellow

Element Assembly

Filler PE or PP material
Wrapping Tape Polyester tape or woven tape
Inner Sheath Black LSZH, thickness 0.75mm
Armor Steel wire braid, dia. 0.2mm, coverage 95%
Outer Sheath LSZH, thickness 1.5mm, nominal outer diameter 21.0mm. Approx.
Sheath Color Black
Cable Weight 485kg/km

Electrical and Physical Properties@20°C:

Coaxial Cable

Conductor Resistance @ 20°C : 22 ohm/km

Impedance: 75±3Ohm (@1MHz)

Max. Attenuation: 5.2dB/100m @50MHz

Power Cable

Conductor Resistance @ 20°C: 7.41Ohm/km

Insulation Resistance: ≥5500 MOhmxkm Data Pairs

Electrical Resistance: 49Ohm/km

Insulation Resistance: ≥1000 MOhmxkm
