3x12AWG Power Cable + 2x(1x2x22AWG) Data Pairs + 4 Core Fiber Optic Cable SWB LSZH Composite Cable

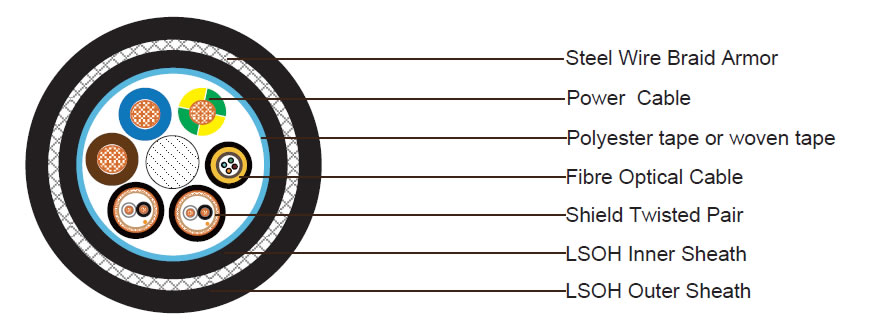

Construction:

3x12AWG Power Cable + 2x(1x2x22AWG) Data Pairs + 4 Core Fiber Optic Cable SWB LSZH Composite Cable

3x12AWG Power Cable

Conductor 12AWG stranded tinned copper to IEC60228 Class 2
Insulation XLPE compound. Nominal outer diameter 3.75mm
Insulation Color Blue, Brown and Green/Yellow

2x(1x2x22AWG) Shielded Twisted Pairs

Conductor 22AWG stranded tinned copper to IEC60228 Class 2
Insulation PE material. Thickness 0.4mm
Insulation Color Black and White
Shield Aluminium polyester tape with 24 AWG stranded tinned copper drain wire
Sheath LSZH sheath. Nominal outer diameter is 4.8mm
Sheath Color Black and Grey

4 Core Central Loose Tube Fiber Optic Cable

Optical Fiber Multi-mode cabled fibers meet or exceed the requirements of ITUT G.651 specification
Loose Tube PBT tubes contains 4 fibers. The tubes are filled with a thixotropic gel to prevent the ingress of water
Aramid Yarn Aramid Yarn is laid over the tube core to serve as peripheral strength
member
Sheath LSZH outer Sheathis extruded over the glass yarn. Nominal outer diameter is about 5.0mm
Sheath Color Black

Element Assembly

Wrapping Tape Polyester tape or woven tape
Inner Jacket Black LSZH, thickness 1.0mm
Armor Galvanized steel wire braid, coverage 95%
Sheath FR-LSZH, thickness 1.6mm, nominal outer diameter 19.5±1.5mm
Sheath Color Black
