225V SR Insulated & LSZH Sheathed Fire Alarm Cables

JE-H(St)H…Bd FE180 E30 (CU/SR/OSCR/LSZH 225V Class 1)
JE-H(St)HSWAH…Bd FE180 E30 (CU/SR/OSCR/LSZH/SWA/LSZH 225V Class 1)

225V SR Insulated & LSZH Sheathed Fire Alarm Cables

APPLICATION
The cables are used for the internal wiring of building when the circuit integrity during fire is paramount. The cables are intended for use in fire fighting plants with special ceramized silicone insulation, with and without aluminum foil and LSZH outer sheath. The fire alarm cables with 30 to 90 minutes circuit integrity should be used for control voltages and data transfer in alarm and fire alarm systems, where a system circuit integrity E30/E60/E90 depending on lay system in accordance with DIN 4102-12 is required. The circuit integrity is guaranteed with a test voltage of 110V.

STANDARDS
Basic design to VDE 0815

FIRE PERFORMANCE

Circuit Integrity

IEC 60331-23; BS 6387 CWZ; DIN VDE 0472-814(FE180);
CEI 20-36/2-1; SS229-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1)

System circuit integrity

DIN 4102-12, E30 depending on lay system

Flame Retardance (Single Vertical
Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2;
VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Halogen Free

IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*

No Corrosive Gas Emission

IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*

Minimum Smoke Emission

IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*

No Toxic gases NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

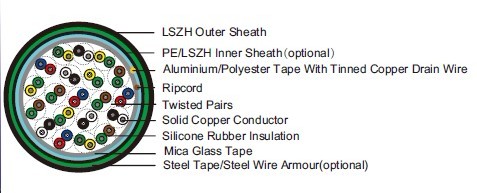

CABLE CONSTRUCTION
Conductors: Solid annealed bare or tinned copper sized 0.6/0.8/0.9mm as per class 1 of VDE 0295/
IEC 60228.
Insulation: Silicone Rubber compound as per DIN VDE 0266.
Cabling Elements: Insulated cores are twisted to form pairs with varying lay length to minimize
crosstalk. Two-pair cable had four cores laid in quad formation.
Cabling: Pairs are cabled together.In cables with 8 pairs or more, 4 pairs are assembled to form a
bunch, and the bunches are then cabled together.
Cable Core Assembly: The twisted pairs are stranded to the core in layers.
Core Wrapping: One or more non hygroscopic polyester tapes are helically or longitudinally laid with
an overlap prior to sheathing.
Screen: A laminated Aluminum/Polyester tape is placed in contact with solid copper 0.6mm or
0.8mm drain wire.
Inner Sheath(optional): PE or thermoplastic LSZH compound type.
Armour (optional): Either corrugated steel tape armour or galvanized steel wire is applied over
an inner polyethylene sheath. For steel tape armour, the 0.15mm thick steel tape is coated with a
copolymer and applied with an overlap. For steel wire armour, single layer of galvanized steel wire
armour is applied.
Ripcord: Nylon ripcord may be placed parallel to the cores to facilitate sheath removal.
Drain Wire: A solid tinned earth/continuity wire shall be laid longitudinally for screened cables.
Outer Sheath: Thermoplastic LSZH compound HM2 as per DIN VDE 0207-24 .

COLOUR CODE
Quad colour in each bundle:
Pair 1: Blue-Red Pair 2: Green-Yellow Pair 3: Green-Brown Pair 4: White-Black
The individual bundles are identified by a numbered helix.

TYPE CODE
JE- Fire alarm cable H Halogen free & zero halogen
Bd Unit stranding. (St) Static shield of Aluminum tape
FE180 Insulation integrity (950°C 180 minutes) E30 30 minutes system circuit integrity
STA Corrugated steel tape SWA Steel wire armour
SWB Steel wire braid

Physical AND THERMAL PROPERTIES
Temperature range during operation (fixed state): -30°C – +90°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 8 x Overall Diameter (unarmoured cable)
10 x Overall Diameter (armoured cables)

Electrical PROPERTIES

Conductor Diameter mm 0.6 0.8 0.9

Conductor Size

mm2

0.283

0.5

0.312

Maximum Conductor Resistance @20°C

Ω/km

63

34.6

28.0

Maximum Loop Resistance @20°C

Ω/km

130

73.2

60

Minimum Insulation Resistance @500V DC @20°C

MΩ.km

100

100

100

Maximum Average Attenuation @0.8KHz

dB/km

1.7

1.2

0.74

Nominal Mutual Capacitance @0.8KHz

nF/km

120

120

120

Maximum Capacitance Unbalance K1 @0.8KHz pair-to-pair

pF/100m

200

200

200

Working Voltage

V

225

225

225

Nominal Insulation Thickness

mm

0.3

0.4

0.45

Nominal Insulated Conductor Diameter

mm

1.2

1.6

1.7

CONSTRUCTION PARAMETERS

VDE CODE: JE-SH(St)H…x2x0.8 Bd FE180/E30

Cable Code

No.of
Pairs

Nominal Insulation Thickness

Nominal Sheath Thickness

Nominal Overall Diameter

Approx.
Weight





mm

mm

mm

kg/km

0.8mm Conductor, 1.6mm Insulated Wire

JE-H(St)H...1x2x0.8 Bd FE180/E30

1

0.4

1.0

6.0

46

JE-H(St)H...2x2x0.8 Bd FE180/E30

2

0.4

1.0

6.6

61

JE-H(St)H...4x2x0.8 Bd FE180/E30

4

0.4

1.0

8.8

104

JE-H(St)H...6x2x0.8 Bd FE180/E30

6

0.4

1.0

10.8

160

JE-H(St)H...8x2x0.8 Bd FE180/E30

8

0.4

1.0

12.8

218

JE-H(St)H...10x2x0.8 Bd FE180/E30

10

0.4

1.2

13.1

220

JE-H(St)H...12x2x0.8 Bd FE180/E30

12

0.4

1.2

13.5

235

JE-H(St)H...16x2x0.8 Bd FE180/E30

16

0.4

1.2

14.7

297

JE-H(St)H...20x2x0.8 Bd FE180/E30

20

0.4

1.2

16.1

367

JE-H(St)H...24x2x0.8 Bd FE180/E30

24

0.4

1.4

18.1

440

JE-H(St)H...30x2x0.8 Bd FE180/E30

30

0.4

1.4

20.1

645

JE-H(St)H...32x2x0.8 Bd FE180/E30

32

0.4

1.4

20.6

645

JE-H(St)H...40x2x0.8 Bd FE180/E30

40

0.4

1.4

22.5

656

JE-H(St)H...50x2x0.8 Bd FE180/E30

50

0.4

1.6

24.3

840

VDE CODE: JE-SH(St)HSWAH…x2x0.6/0.8/0.9 Bd FE180/E30

Cable Code

No. of
Pairs

Nominal Insulation Thickness

Nominal Sheath Thickness

Nominal Overall Diameter

Approx.
Weight





mm

mm

mm

kg/km

0.6mm Conductor,1.2mm Insulated Wire

JE-H(St)HSWAH...2x2x0.6 Bd FE180/E30

2

0.3

1.0/1.8

12.1

305

JE-H(St)HSWAH...3x2x0.6 Bd FE180/E30

3

0.3

1.0/1.8

12.6

325

JE-H(St)HSWAH...6x2x0.6 Bd FE180/E30

6

0.3

1.0/1.8

12.6

380

JE-H(St)HSWAH...8x2x0.6 Bd FE180/E30

8

0.3

1.0/1.8

14.6

415

JE-H(St)HSWAH...10x2x0.6 Bd FE180/E30

10

0.3

1.0/1.8

16.5

450

JE-H(St)HSWAH...12x2x0.6 Bd FE180/E30

12

0.3

1.0/1.8

17.0

500

JE-H(St)HSWAH...20x2x0.6 Bd FE180/E30

20

0.3

1.0/1.8

20.5

580

JE-H(St)HSWAH...25x2x0.6 Bd FE180/E30

25

0.3

1.0/1.8

21.5

940

JE-H(St)HSWAH...30x2x0.6 Bd FE180/E30

30

0.3

1.0/1.8

22.5

1300

0.8mm Conductor, 1.6mm Insulated Wire

JE-H(St)HSWAH...2x2x0.8 Bd FE180/E30

2

0.4

1.0/1.8

14.0

415

JE-H(St)HSWAH...3x2x0.8 Bd FE180/E30

3

0.4

1.0/1.8

14.0

425

JE-H(St)HSWAH...6x2x0.8 Bd FE180/E30

6

0.4

1.0/1.8

15.0

485

JE-H(St)HSWAH...8x2x0.8 Bd FE180/E30

8

0.4

1.0/1.8

17.5

520

JE-H(St)HSWAH...10x2x0.8 Bd FE180/E30

10

0.4

1.2/1.8

19.0

540

JE-H(St)HSWAH...12x2x0.8 Bd FE180/E30

12

0.4

1.2/1.8

20.5

600

JE-H(St)HSWAH...20x2x0.8 Bd FE180/E30

20

0.4

1.4/1.8

24.5

1050

JE-H(St)HSWAH...25x2x0.8 Bd FE180/E30

25

0.4

1.4/1.8

27.0

1250

JE-H(St)HSWAH...30x2x0.8 Bd FE180/E30

30

0.4

1.4/1.8

28.5

1450

0.9mm Conductor, 1.8mm Insulated Wire

JE-H(St)HSWAH...10x2x0.9 Bd FE180/E30

10

0.45

1.2/1.8

19.7

600

JE-H(St)HSWAH...15x2x0.9 Bd FE180/E30

15

0.45

1.2/1.8

23.0

1020

JE-H(St)HSWAH...20x2x0.9 Bd FE180/E30

20

0.45

1.4/1.8

25.3

1160

JE-H(St)HSWAH...25x2x0.9 Bd FE180/E30

25

0.45

1.4/1.8

27.3

1330

JE-H(St)HSWAH...30x2x0.9 Bd FE180/E30

30

0.45

1.4/1.8

29.3

1520
