FIREGUARD Flame Retardant Cables

Flame Retardant Coaxial Cables

Flame Retardant RG6 A/U Coaxial cables

Flame Retardant Coaxial Cables

APPLICATION
The cables are designed for CCTV, security, smoke detection and evacuation monitoring
applications, where continued functionality is required during a fire situation. Due to the zero halogen
low smoke construction, this cable is ideal for use in public, commercial and industrial environments.

STANDARDS
Basic design adapted to MIL-C-17

FIRE PERFORMANCE

Flame Retardance (Single Vertical
Wire Test)**

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE
0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)**

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.

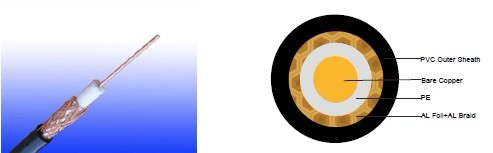

CABLE CONSTRUCTION
Conductors: Bare copper copper wire, solid according to IEC(EN) 60228 class 1.
Insulation: Foamed PE compound.
Overall Screen: Aluminium foil(100%)+Aluminium braid (70%)
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance,
anti rodent and anti termite properties can be offered as option. Compliance to fire performance
standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the
PVC compound and the overall cable design. LSPVC can also be provided upon request.

Physical AND THERMAL PROPERTIES
Temperature Range During Operation (Fixed State): -30°C - +70°C
Temperature Range During Installation (Mobile State): -5°C - +60°C
Minimum Bending Radius: 8 X Overall Diameter

Electrical Properties

IMPEDANCE

75±5Ω

CAPACITANCE

54 NF/KM

Velocity ratio(%)

82

Insulation resistance

>5000 Mohm.Km

Shield coverage

AL FOIL(100%)+AL 70%

DC resistance



Inner conductor

23.1 Ω/km

Outer conductor

31 Ω/km

Attenuation

Frequency(MHz)

Attenuation (dB/100 m)

Attenuation (dB/100ft)

50

5.0

1.5

100

6.4

1.96

200

9.2

2.8

500

14.5

4.4

600

15.9

4.9

800

17.7

5.4

1000

21.9

6.7

1350

24.9

7.6

1750

29.0

8.8

2050

33.1

10.1

2400

36.4

11.1

Return Loss

Frequency(MHz)

Return Loss (dB)

30-300

>28dB

300-600

>24dB

600-900

>22dB

CONSTRUCTION PARAMETERS

Cable
Code

Conductor
Diameter

Nominal Insulation Diameter

Nominal
Screen
No.x Diameter

Nominal Overall Diameter

Approx. Weight



mm

mm

No. x mm

mm

kg/km

FGD RG6 A/U

1.02

4.57 ± 0.20

96 x 0.12

7.00

81.6
