Flame Retardant Data Cables

APPLICATION
Cat6 Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT,
100BaseTx & 1000BaseT (Gigabit Ethernet) application. In addition, these cables are with copper
wire braid armoured & flame retardant mud resistant outer sheath, providing additional mechanically
protection still maintaining the flexibility of the cable.

STANDARDS
Basic design to EN50173

FIRE PERFORMANCE

Flame Retardance (Single Vertical
Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE
0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Halogen Free

IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*

No Corrosive Gas Emission

IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*

minimum Smoke Emission

IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*

No Toxic gases

NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

VOLTAGE RATING
60V

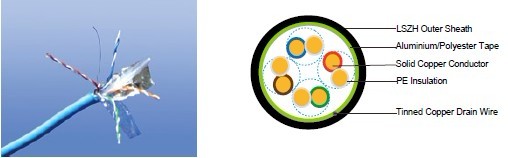

CABLE CONSTRUCTION
Conductors: 23AWG solid bare copper.
Insulation: HDPE.
Twinning: Two coloured insulated conductors twisted together to form a pair.
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH
compound type SW2-SW4 as per BS 7655:section 2.6 can be offered.)
Cat6 F/UTP: These cables have collective shielding of aluminium/Polyester tape with drain wire.
Cat6 SF/UTP: These cables have double collective shieldings of aluminium/Polyester tape & copper
wire braid with drain wire.

Physical AND THERMAL PROPERTIES
Temperature range: -30°C ~ +75°C
Minimum bending radius during installation (mobile state): 8 x Overall Diameter
Minimum bending radius during operation (fixed state): 4 x Overall Diameter

Electrical Properties

AWG



23

Nominal Conductor Diameter

mm

0.56/0.57

maximum DC Resistant@20°C

Ω/100m

9.38

maximum DCR Unbalance

%

3

maximum mutual Capacitance

pF/m

5.8

maximum Capacitance Unbalance

pF/100m

30

Characteristic Impedance@1-100mHz

Ω

100+/-15

maximum Propagation Delay Skew

ns/100m

18

Transmission Properties

FREQ
mHz

maximum
Attenuation dB/100m

minimum
NEXT
dB

minimum
PSNEXT
dB

minimum
ELFEXT
dB/100m

minimum
PSELFEXT
dB/100m

minimum
RL
dB

0.772

1.8

76.0

74.

70.0

67.0

—

1

2.0

74.3

72.3

67.8

64.8

20.0

4

3.8

65.3

63.3

55.7

52.7

23.0

8

5.3

60.8

58.8

49.7

46.7

24.5

10

6.0

59.3

57.3

47.8

44.8

25.0

16

7.6

56.3

54.3

43.7

40.7

25.0

20

8.5

54.8

52.8

41.7

38.7

25.0

25

9.5

53.3

51.3

39.8

36.8

24.3

31.25

10.7

51.9

49.9

37.9

34.9

23.6

62.5

15.4

47.4

45.4

31.8

28.8

21.5

100

19.8

44.3

42.3

27.8

24.8

20.1

155

25.2

41.5

39.5

23.9

20.9

18.8

200

29.0

39.8

37.8

21.7

18.7

18.0

250

32.8

38.3

36.3

19.8

16.8

17.3

CONSTRUCTION PARAMETERS

Cable Code

Conductor
Diameter

Diameter Over Insulation

Pairs

Screen

Overall
Diameter



mm

mm





mm

Cat6 U/UTP

0.57/0.58

1.02

4

Nil

6.0

Cat6 F/UTP

0.57/0.58

1.02

4

Overall Aluminum Tape Screen

6.3

Cat6 SF/UTP

0.57/0.58

1.02

4

Overall Aluminum Tape Screen & Copper Wire Braid

6.6
