600/1000V XLPE Insulated, LSZH Sheathed, Armoured Power Cables ((2-4cores)

FTX400 1RZ1-R (CU/XLPE/LSZH 600/1000V Class 2)
FTX400 1RZ1MZ1-R (CU/XLPE/LSZH/SWA/LSZH 600/1000V Class 2)

APPLICATION
The cables are mainly used in power stations, mass transit underground passenger systems,
airports, petrochemical plants, hotels, hospitals, and high-rise buildings.

STANDARDS
Basic design to IEC 60502-1; BS 6724

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1; DIN VDE 0482-265-2-1
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2; BS 7622-1&2
No Toxic gases	NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

VOLTAGE RATING
600/1000V

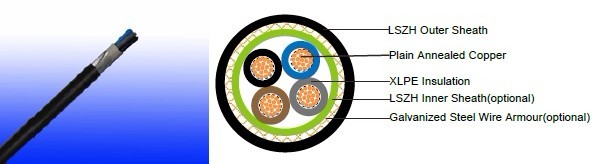

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Extruded cross-linked XLPE compound.
Inner Sheath(optional): LSZH Compound
Armouring(optional): Galvanized Steel Wire
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH
compound type SW2-SW4 as per BS 7655-2.6 can be offered.)

COLOUR CODE
Insulation colour as per bs7671

	with earth conductor	without earth conductor
2Cores	-	Brown,Blue
3Cores	Yellow/Green,Brown,Blue	Brown,Gray,Black
4Cores	Yellow/Green,Brown,Gray,Black	Brown,Gray,Black,Blue
5Cores	Yellow/Green,Brown,Gray,Black,Blue	Brown,Gray,Black,Blue,Black
above 5 Cores	Yellow/Green,Black Numbered	Black Numbered

sheath colour: Black

Physical AND THERMAL PROPERTIES
Temperature range during operation: Max.90°C for XLPE
250°C in short-circuit for 5s max.
Minimum bending radius: 8 x Overall Diameter (unarmoured cable)
10 x Overall Diameter (armoured cable)

CONSTRUCTION PARAMETERS

Conductor			FTX400 1RZ1-R		FTX400 1RZ1MZ1-R
No. of Core X Cross Section	No./ Nominal Diameter of Strands	Nominal Insulation Thickness	Unarmoured		Armoured
No. of Core X Cross Section	No./ Nominal Diameter of Strands	Nominal Insulation Thickness	Nominal Overall Diameter	Approx. Weight	Diameter Under Armour	Armour Wire Diameter	Nominal Overall Diameter	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	mm	mm	kg/km
2x1.5	7/0.53	0.7	10.0	126	8.5	0.9	13.9	350
2x2.5	7/0.67	0.7	10.8	158	9.3	0.9	14.7	400
2x4	7/0.85	0.7	11.9	205	10.4	0.9	15.8	475
2x6	7/1.04	0.7	13.0	264	11.5	0.9	16.9	560
2x10	7/1.35	0.7	14.9	378	13.4	1.25	19.5	810
2x16	7/1.70	0.7	17.0	534	15.5	1.25	21.6	980
2x25	7/2.14	0.9	20.4	650	18.9	1.6	25.7	1410
2x35	7/2.52	0.9	22.7	880	21.2	1.6	28.0	1930
3x1.5	7/0.53	0.7	10.5	145	9.0	0.9	14.4	390
3x2.5	7/0.67	0.7	11.4	185	9.9	0.9	15.3	450
3x4	7/0.85	0.7	12.5	247	11.0	0.9	16.4	540
3x6	7/1.04	0.7	13.8	323	11.6	1.25	17.7	745
3x10	7/1.35	0.7	15.8	474	14.3	1.25	20.4	950
3x16	7/1.70	0.7	18.0	682	16.5	1.25	23.0	1250
3x25	7/2.14	0.9	21.7	910	20.2	1.6	27.0	1840
3x35	7/2.52	0.9	24.0	1180	22.4	1.6	29.2	2050
3x50(S)	19/1.78	1.0	25.5	1600	24.2	1.6	31.2	2590
3x70(S)	19/2.14	1.1	29.0	2240	28.2	2.0	36.2	3560
3x95(S)	19/2.52	1.1	33.5	3050	31.7	2.0	40.1	4590
3x120(S)	37/2.03	1.2	37.5	3800	36.0	2.0	44.6	5810
3x150(S)	37/2.25	1.4	40.5	4640	39.5	2.5	49.5	6920
3x185(S)	37/2.52	1.6	45.0	5870	43.3	2.5	53.5	8340
3x240(S)	61/2.25	1.7	50.5	7670	48.4	2.5	59.0	10450
3x300(S)	61/2.52	1.8	57.0	9460	54.4	2.5	65.4	12700
3x400(S)	61/2.85	2.0	63.0	11945	57.8	2.5	70.0	15326
4x1.5	7/0.53	0.7	11.3	169	10.0	0.9	15.4	430
4x2.5	7/0.67	0.7	12.3	220	10.8	0.9	16.2	505
4x4	7/0.85	0.7	13.6	297	12.1	0.9	17.5	710
4x6	7/1.04	0.7	15.0	392	13.5	1.25	19.6	855
4x10	7/1.35	0.7	17.2	585	15.7	1.25	21.8	1120
4x16	7/1.70	0.7	19.7	851	18.2	1.6	25.0	1600
4x25	7/2.14	0.9	23.9	1200	22.4	1.6	29.2	2160
4x35(S)	7/2.52	0.9	25.0	1600	24.4	1.6	31.4	2560
4x50(S)	19/1.78	1.0	28.0	2200	28.0	1.6	35.2	3180
4x70(S)	19/2.14	1.1	32.0	3050	32.2	2.0	40.6	4490
4x95(S)	19/2.52	1.1	37.0	4070	36.0	2.0	44.6	5725
4x120(S)	37/2.03	1.2	42.0	5915	38.0	2.5	50.0	7550
4x150(S)	37/2.25	1.4	46.0	6350	42.8	2.5	53.0	8555
4x185(S)	37/2.52	1.6	50.0	7890	48.4	2.5	59.0	10560
4x240(S)	61/2.25	1.7	57.0	10400	55.0	2.5	66.0	13180
4x300(S)	61/2.52	1.8	63.0	12810	59.6	2.5	71.0	16100
4x400(S)	61/2.85	2.0	71.0	15869	66.1	3.15	79.4	20715
4x500(S)	61/3.20	2.2	78.0	20300	74.6	3.15	88.5	25347

(S) - Sectoral Stranded Conductors

Electrical PROPERTIES
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C

FTX400 1RZ1-R
Current-Carrying Capacities (Amp)

Conductor cross- sectional area	Reference method 4 (enclosed in conduit in thermally insulating wall etc)		Reference method 3 (enclosed in conduit on a wall or in trunking etc)		Reference method 1 (clipped direct)		Reference method 11 (on a perforated cable tray, horizontal or vertical)		Reference method 12 (free air)
Conductor cross- sectional area					Reference method 1 (clipped direct)				Horizontal flat spaced	Vertical flat spaced	Trefoil
	2 cables, single- phase a.c. or d.c.	3 or 4 cables, 3-phase a.c.	2 cables, single- phase a.c. or d.c	3 or 4 cables, 3-phase a.c.	2 cables, single- phase a.c. or d.c. flat and touching	3 or 4 cables, 3-phase a.c. flat and touching or trefoil	2 cables, single- phase a.c. or d.c. or flat and touching	3 or 4 cables, 3-phase a.c. flat and touching or trefoil	2 cables, single- phase a.c. or d.c. or 3 c ables three phase	2 cables, single- phase a.c. or d.c. or 3 cables three phase	3 cables, trefoil 3-phase a.c.
1	2	3	4	5	6	7	8	9	10	11	12
mm2	A	A	A	A	A	A	A	A	A	A	A
1.5	18	17	22	19	25	23	-	-	-	-	-
2.5	24	23	30	26	34	31	-	-	-	-	-
4	33	30	40	35	46	41	-	-	-	-	-
6	43	39	51	45	59	54	-	-	-	-	-
10	58	53	71	63	81	74	-	-	-	-	-
16	76	70	95	85	109	99	-	-	-	-	-
25	100	91	126	111	143	130	158	140	183	163	138
35	125	111	156	138	176	161	195	176	226	203	171
50	149	135	189	168	228	209	293	215	274	246	209
70	189	170	240	214	293	268	308	279	351	318	270
95	228	205	290	259	355	326	375	341	426	389	330
120	263	235	336	299	413	379	436	398	495	453	385
150	300	270	375	328	476	436	505	461	570	524	445
185	341	306	426	370	545	500	579	530	651	600	511
240	400	358	500	433	644	590	686	630	769	711	606
300	459	410	573	493	743	681	794	730	886	824	701
400	-	-	684	584	868	793	915	849	1065	994	820
500	-	-	783	666	990	904	1044	973	1228	1150	936

Voltage Drop (Per Amp Per Meter)

Size of conductor	2 cables d.c.	2 cables, single-phase a.c.						3 or 4 cables, 3-phase a.c.
Size of conductor	2 cables d.c.	Ref. Methods 3 and 4 (enclosed in conduit etc, in or on a wall)			Ref. Methods 1 and 11 (clipped direct or on trays touching)			Ref. Methods 3 and 4 (enclosed in conduit etc, in or on a wall)			Ref. Methods 1, 11 and 12 (in trefoil)			Ref. Methods 1 and 11(Flat and touching)
1	2	3			4			5			6			7
mm2	mV/A/m	mV/A/m			mV/A/m			mV/A/m			mV/A/m			mV/A/m
1.5	31	31			27			27			27			27
2.5	19	19			16			16			16			16
4	33	12			10			10			10			10
6	7.8	7.9			6.8			6.8			6.8			6.8
10	4.7	4.7			4.7			4			4			4
16	2.9	2.9			2.9			2.5			2.5			2.5
		r	x	z	r	x	z	r	x	z	r	x	z	r	x	z
25	1.85	1.85	0.31	1.90	1.85	0.190	1.85	1.60	0.27	1.65	1.600	0.165	1.600	1.600	0.190	1.600
35	1.35	1.35	0.29	1.35	1.35	0.180	1.35	1.15	0.25	1.15	1.150	0.155	1.50	1.150	0.180	1.150
50	0.99	1.00	0.29	1.05	0.99	0.180	1.00	0.87	0.25	0.90	0.860	0.155	0.870	0.860	0.180	0.870
70	0.68	0.70	0.28	0.75	0.68	0.175	0.71	0.60	0.24	0.65	0.590	0.150	0.610	0.590	0.175	0.620
95	0.49	0.51	0.27	0.58	0.49	0.170	0.52	0.44	0.23	0.50	0.430	0.145	0.450	0.430	0.170	0.460
120	0.39	0.41	0.26	0.48	0.39	0.165	0.43	0.35	0.23	0.42	0.340	0.140	0.370	0.340	0.165	0.380
150	0.32	0.33	0.26	0.43	0.32	0.165	0.36	0.29	0.23	0.37	0.280	0.140	0.310	0.280	0.165	0.320
185	0.25	0.27	0.26	0.37	0.26	0.165	0.30	0.23	0.23	0.32	0.220	0.140	0.260	0.220	0.165	0.280
240	0.19	0.21	0.26	0.33	0.20	0.160	0.25	0.185	0.22	0.29	0.170	0.140	0.220	0.170	0.165	0.240
300	0.155	0.175	0.25	0.31	0.16	0.160	0.22	0.150	0.22	0.27	0.140	0.140	0.195	0.135	0.160	0.210
400	0.12	0.140	0.25	0.29	0.13	0.155	0.20	0.125	0.22	0.25	0.110	0.135	0.175	0.110	0.160	0.195
500	0.093	0.120	0.25	0.28	0.105	0.155	0.185	0.100	0.22	0.24	0.090	0.135	0.160	0.088	0.160	0.180

FTX400 1RZ1MZ1-R
Current-Carrying Capacities (Amp)

Conductor crosssectional area	Reference Method 1 (clipped direct)		Reference Method 11 (on a perforated horizontal cable trayor Reference Method 13 [free air] )		In single-way ducts		Laid direct in ground
Conductor crosssectional area	one 2-core cable single phase a.c. or d.c.	one 3-core or 4-core cable 3-phase a.c.	one 2-core cable single phase a.c. or d.c.	one 3-core or 4-core cable 3-phase a.c.	one 2-core cable single phase a.c. or d.c.	one 3-core or 4-core cable 3-phase a.c.	one 2-core cable single phase a.c. or d.c.	one 3-core or 4-core cable 3-phase a.c.
1	2	3	4	5	6	7	8	9
mm2	A	A	A	A	A	A	A	A
1.5	27	23	29	25	-	23	-	28
2.5	36	31	39	33	-	30	-	36
4	49	42	52	44	-	40	-	48
6	62	53	66	56	-	50	-	60
10	85	73	90	78	-	65	-	80
16	110	94	115	99	115	94	140	115
25	146	124	152	131	145	125	180	150
35	180	154	188	162	175	150	215	180
50	219	187	228	197	210	175	255	215
70	279	238	291	251	260	215	315	265
95	338	289	354	304	310	260	380	315
120	392	335	410	353	355	300	430	360
150	451	386	472	406	400	335	480	405
185	515	441	539	463	455	380	540	460
240	607	520	636	546	520	440	630	530
300	698	599	732	628	590	495	700	590
400	787	673	847	728	660	560	790	670

Voltage Drop (Per Amp Per Meter)

Conductor cross-sectional area	2-core cable d.c.	2 cables, single-phase a.c.			3 or 4 cables, 3-phase a.c.			2 cables, single- phase a.c.	3 or 4 cables, 3-phase a.c.
Conductor cross-sectional area	2-core cable d.c.	2 cables, single-phase a.c.			3 or 4 cables, 3-phase a.c.			In ducts or in ground	In ducts or in ground
1	2	3			4			5	6
mm2	mV/A/m	mV/A/m			mV/A/m			mV/A/m	mV/A/m
1.5	31.0	31.0			27.0			31.0	25.0
2.5	19.0	19.0			16.0			19.0	15.0
4	12.0	12.0			10.0			12.0	9.7
6	7.9	7.9			6.8			7.9	6.5
10	4.7	4.7			4.0			4.7	3.9
16	2.9	2.9			2.5			2.9	2.6
		r	x	z	r	x	z
25	1.850	1.350	0.160	1.900	1.600	0.140	1.650	1.900	1.600
35	1.350	1.350	0.155	1.350	1.150	0.135	1.150	1.350	1.200
50	0.980	0.990	0.155	1.000	0.860	0.135	0.870	1.000	0.870
70	0.670	0.670	0.150	0.690	0.590	0.130	0.600	0.690	0.610
95	0.490	0.500	0.150	0.520	0.430	0.130	0.450	0.520	0.450
120	0.390	0.400	0.145	0.420	0.340	0.130	0.370	0.420	0.360
150	0.310	0.320	0.145	0.350	0.280	0.125	0.300	0.350	0.300
185	0.250	0.260	0.145	0.290	0.220	0.125	0.260	0.290	0.250
240	0.195	0.200	0.140	0.240	0.175	0.125	0.210	0.240	0.210
300	0.155	0.160	0.140	0.210	0.140	0.120	0.185	0.210	0.190
400	0.120	0.130	0.140	0.190	0.115	0.120	0.165	0.190	0.180
