Firetox Flame Retardant Cables

Flame Retardant Instrumentation Cables

Flame Retardant Individual and Overall Screened Instrumentation Cables (multipair)

RE-2X(St)H Pimf

Flame Retardant Instrumentation Cables

APPLICATION
The unarmoured LSZH versions (Part 1 Type 1) cables are generally use for indoor installation and
suitable for wet and damp areas. Generally used within industrial process manufacturing plants for
communication, data and voice transmission signals and services, Also used for the interconnection
of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume
emission.

STANDARDS
Basic design to BS 5308 Part1 Type1 & 2

FIRE PERFORMANCE

Flame Retardance (Single Vertical
Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE
0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Halogen Free

IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*

No Corrosive Gas Emission

IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*

minimum Smoke Emission

IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*

No Toxic gases

NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

VOLTAGE RATING
300/500V

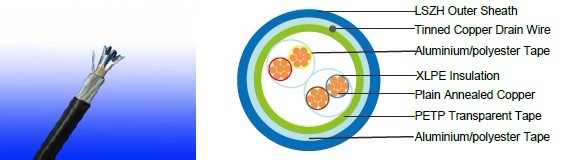

CABLE CONSTRUCTION
Conductor: Annealed or tinned copper, sizes: 0.5mm² and 0.75mm² mulitistranded(Class 5), 0.5
mm², 1.0 mm² solid(Class 1), 1.5mm² or 2.5mm², multistranded(Class 2) to BS6360
Insulation: XLPE (Cross Linked Polyethylene), or PE (optional)
Pairs: Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
Individual Screen: Aluminium/polyester tape is applied over each pair metallic side down in contact
with tinned copper drain wire, 0.5mm²
Binder tape: PETP transparent tape
Overall Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in
contact with tinned copper drain wire, 0.5mm²
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH
compound type SW2-SW4 as per BS 7655-2.6 can be offered.)

COLOUR CODE
Insulation Colour: See technical information
Outer sheath: Black or blue

Physical AND THERMAL PROPERTIES
Maximum Operating temperature: -20˚C - + 90˚C( fixed installation)
0˚C - +50˚C(during operation)
Minimum bending radius: 5 x Overall Diameter

Electrical Properties

Conductor Area Size

mm 2

0.5

0.5

0.75

1.0

1.5

Conductor Stranding

No. x mm

1 x 0.8

16 x 0.2

24 x 0.2

1 x 1.13

7 x 0.53

Conductor resistance max

ohm/km

36.8

39.7

26.5

18.2

12.3

Insulation resistance min

Gohm/km

5

5

5

5

5

Capacitance unbalance at 1
kHz(pair to pair screen)

pF/250m

250

max. mutual Capacitance @ 1
kHz forNon OS or OS cables (except one-pair and two- pairs)

pF/m

115

115

115

115

115

max. mutual Capacitance @
1 kHz IS/OS cables (include 1 pair and 2 pair)

pF/m

75

75

75

75

75

max. L/R Ratio for adjacent
cores(Inductance/Resistance)

μH/ohm

25

25

25

25

40

Test voltage

Core to core

V

1000

1000

1000

1000

1000

Core to screen

V

1000

1000

1000

1000

1000

Rated voltage max

V

300/500

300/500

300/500

300/500

300/500

CONSTRUCTION PARAMETERS

Number of Pairs

No./
Nominal Diameter of Strands

Nominal Conductor Cross- Section Area

Nominal Insulation Thickness

Nominal Sheath Thickness

Nominal Overall Diameter

Approx. Weight

No./mm

mm2

mm

mm

mm

kg/km

2

1/0.8

0.5

0.5

0.9

9.7

95

5

1/0.8

0.5

0.5

1.2

13

180

10

1/0.8

0.5

0.5

1.2

16.9

310

15

1/0.8

0.5

0.5

1.3

19.7

440

20

1/0.8

0.5

0.5

1.3

22.3

560

30

1/0.8

0.5

0.5

1.5

27.1

820

50

1/0.8

0.5

0.5

2

35

1370

2

16/0.2

0.5

0.6

1.1

11.2

110

5

16/0.2

0.5

0.6

1.2

14.5

250

10

16/0.2

0.5

0.6

1.3

19.3

480

15

16/0.2

0.5

0.6

1.5

22.6

570

20

16/0.2

0.5

0.6

1.5

25.7

780

30

16/0.2

0.5

0.6

1.7

31

1020

50

16/0.2

0.5

0.6

2.2

39.9

1680

2

1/1.13

1

0.6

1.1

11.9

200

5

1/1.13

1

0.6

1.2

15.4

290

10

1/1.13

1

0.6

1.3

20.5

580

15

1/1.13

1

0.6

1.5

24.1

780

20

1/1.13

1

0.6

1.7

27.7

1010

30

1/1.13

1

0.6

2

33.7

1430

50

1/1.13

1

0.6

2.2

42.5

2360

2

7/0.53

1.5

0.6

1.2

13.6

250

5

7/0.53

1.5

0.6

1.3

17.7

460

10

7/0.53

1.5

0.6

1.5

23.9

760

15

7/0.53

1.5

0.6

1.7

28

1020

20

7/0.53

1.5

0.6

2

31.7

1350

30

7/0.53

1.5

0.6

2.2

38.6

1900

50

7/0.53

1.5

0.6

2.2

48.9

3060
