Flame Retardant Overall Screened Instrumentation Cables (multicore)

RE-2X(St)H
RE-2X(St)HSWAH

APPLICATION
The unarmoured LSZH versions (Part 1 Type 1&2) cables are generally use for indoor installation
and suitable for wet and damp areas. Generally used within industrial process manufacturing
plants for communication, data and voice transmission signals and services, Also used for the
interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke
and fume emission.

STANDARDS
Basic design to BS 5308 Part1 Type1 & 2

FIRE PERFORMANCE

Note: Asterisk * denotes superseded standard.

VOLTAGE RATING
300/500V

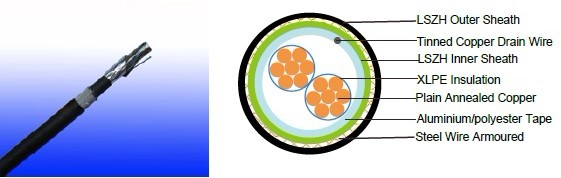

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2 and 5 .
Insulation: Extruded cross-linked XLPE compound.
Overall Screen: Aluminium/polyester tape with 0.5mm2 screen (7/0.3mm) tinned copper drain wire.
Inner Sheath(optional): LSZH compound
Armouring(optional): Galvanised steel wire
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH
compound type SW2-SW4 as per BS 7655-2.6 can be offered.)

COLOUR CODE
Insulation Colour: See technical information
Outer sheath: Black or blue

Physical AND THERMAL PROPERTIES
Temperature range during operation: Max.90°C for XLPE
250°C in short-circuit for 5s max.
Minimum bending radius: 8 x Overall Diameter (unarmoured cable)
10 x Overall Diameter (armoured cable)
