APPLICATION
Cat6 Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT,
100BaseTx & 1000BaseT (Gigabit Ethernet) application. In addition, these cables are with copper
wire braid armoured & flame retardant mud resistant outer sheath, providing additional mechanically
protection still maintaining the flexibility of the cable.

STANDARDS
Basic design to EIA/TIA 485

FIRE PERFORMANCE

Flame Retardance (Single Vertical
Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE
0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Halogen Free

IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*

No Corrosive Gas Emission

IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*

minimum Smoke Emission

IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*

No Toxic gases

NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

VOLTAGE RATING
60V

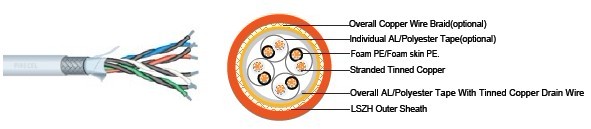

CABLE CONSTRUCTION
Multipair RS 485 Overall Screened Databus Cable
Conductors: tinned copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Foam PE or foam skin PE.
Cabling Elements: Insulated cores are twisted to form pairs with varying lay length to minimize
crosstalk. Two pair cable had four cores laid in quad formation.
Cabling: Pairs are cabled together in concentric layers.
Overall screen: Aluminum/polyester tape with tinned copper drain wire.
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZHcompound type SW2-SW4 as per BS 7655-2.6 can be offered.)

Multipair RS 485 Overall Double Screened Databus Cable
Conductors: tinned copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Foam PE or foam skin PE.
Cabling Elements: Insulated cores are twisted to form pairs with varying lay length to minimize
crosstalk. Two pair cable had four cores laid in quad formation.
Cabling: Pairs are cabled together in concentric layers.
Overall screen: Aluminium/polyester tape+copper wire braid.
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH
compound type SW2-SW4 as per BS 7655-2.6 can be offered.)

Multipair RS 485 Individual & Overall screened Databus Cable
Conductors: tinned copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Foam PE or foam skin PE.
Cabling Elements: Insulated cores are twisted to form pairs with varying lay length to minimize
crosstalk. Two pair cable had four cores laid in quad formation.
Cabling: Pairs are cabled together in concentric layers.
Individual Screen: Individual aluminium/polyester tape.
Overall Screen: Copper wire braid.
outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH
compound type SW2-SW4 as per BS 7655-2.6 can be offered.)

Multipair RS 485 Overall Screened Databus Cable
Conductors: tinned copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Foam PE or foam skin PE.
Cabling Elements: Insulated cores are twisted to form pairs with varying lay length to minimize
crosstalk. Two pair cable had four cores laid in quad formation.
Cabling: Pairs are cabled together in concentric layers.
Overall Screen: Copper wire braid.
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH
compound type SW2-SW4 as per BS 7655-2.6 can be offered.)

Physical AND THERMAL PROPERTIES
Temperature range during operation (fixed state): -20°C - +90°C
Temperature range during installation (mobile state): -5°C - +60°C
Minimum bending radius: 8 x Overall Diameter

Electrical Properties

Dielectric test

1000 V r.m.s. for 5’ (core-core)



1000 V r.m.s. for 5’ (core-screen)

Impedance

120Ω

capacitance

45 nF/km conductor to conductor



90 nF/km conductor to shield

CONSTRUCTION PARAMETERS
Multipair RS 485 Overall Screened Databus Cable
RE-02Y(St)H / RE-02YS(St)H

No.of pair x

Nominal Cross Sectional Area

No./Nominal Diameter of Strands

Nominal Insulation Thickness

Nominal Sheath Thickness

Nominal Overall Diameter

Approx. Weight



mm2

No/mm

mm

mm

mm

kg/km

1

0.22

7/0.2

0.55

0.40

4.0

21

2

0.22

7/0.2

0.55

0.40

7.1

42

4

0.22

7/0.2

0.55

0.40

8.3

68

1

0.50

16/0.2

0.55

0.40

4.6

32

2

0.50

16/0.2

0.55

0.40

8.2

68

4

0.50

16/0.2

0.55

0.40

9.8

115

1

0.75

24/0.2

0.55

0.40

5.1

40

2

0.75

24/0.2

0.55

0.40

9.1

84

4

0.75

24/0.2

0.55

0.40

10.9

144

1

1.00

30/0.2

0.55

0.40

5.2

49

2

1.00

30/0.2

0.55

0.40

9.5

105

4

1.00

30/0.2

0.55

0.40

11.2

182

Multipair RS 485 Overall Double Screened Databus Cable
RE-02Y(St)CH / RE-02YS(St)CH

No.of pair x

Nominal
Cross Sectional Area

No./Nominal Diameter of Strands

Nominal Insulation Thickness

Nominal Sheath Thickness

Nominal Overall Diameter

Approx. Weight



mm2

No/mm

mm

mm

mm

kg/km

1

0.22

7/0.2

0.55

0.40

4.5

34

2

0.22

7/0.2

0.55

0.40

7.5

67

4

0.22

7/0.2

0.55

0.40

8.8

97

1

0.50

16/0.2

0.55

0.40

5.1

48

2

0.50

16/0.2

0.55

0.40

8.7

97

4

0.50

16/0.2

0.55

0.40

10.3

150

1

0.75

24/0.2

0.55

0.40

5.6

57

2

0.75

24/0.2

0.55

0.40

9.7

116

4

0.75

24/0.2

0.55

0.40

11.4

182

1

1.00

30/0.2

0.55

0.40

5.7

67

2

1.00

30/0.2

0.55

0.40

10.0

138

4

1.00

30/0.2

0.55

0.40

11.8

222

Multipair RS 485 Individual & Overall screened Databus Cable
RE-02Y(St)H pimf / RE-02YS(St)H pimf

No.of pair x

Nominal
Cross Sectional Area

No./Nominal Diameter of Strands

Nominal Insulation Thickness

Nominal Sheath Thickness

Nominal Overall Diameter

Approx. Weight



mm2

No/mm

mm

mm

mm

kg/km

1

0.22

7/0.2

0.55

0.40

4.4

35

2

0.22

7/0.2

0.55

0.40

7.5

69

4

0.22

7/0.2

0.55

0.40

8.8

106

1

0.50

16/0.2

0.55

0.40

5.0

49

2

0.50

16/0.2

0.55

0.40

8.7

100

4

0.50

16/0.2

0.55

0.40

10.3

159

1

0.75

24/0.2

0.55

0.40

5.5

58

2

0.75

24/0.2

0.55

0.40

9.7

119

4

0.75

24/0.2

0.55

0.40

11.2

174

1

1.00

30/0.2

0.55

0.40

5.6

68

2

1.00

30/0.2

0.55

0.40

10.0

142

4

1.00

30/0.2

0.55

0.40

11.8

234

Multipair RS 485 Overall Screened Databus Cable
RE-02YCH / RE-02YSCH

No.of pair x

Nominal
Cross Sectional Area

No./Nominal Diameter of Strands

Nominal Insulation Thickness

Nominal Sheath Thickness

Nominal Overall Diameter

Approx. Weight



mm2

No/mm

mm

mm

mm

kg/km

1

0.22

7/0.2

0.55

0.40

4.3

31

2

0.22

7/0.2

0.55

0.40

7.3

61

4

0.22

7/0.2

0.55

0.40

8.5

91

1

0.50

16/0.2

0.55

0.40

4.9

44

2

0.50

16/0.2

0.55

0.40

8.5

91

4

0.50

16/0.2

0.55

0.40

10.0

142

1

0.75

24/0.2

0.55

0.40

5.4

53

2

0.75

24/0.2

0.55

0.40

9.5

109

4

0.75

24/0.2

0.55

0.40

11.2

174

1

1.00

30/0.2

0.55

0.40

5.5

63

2

1.00

30/0.2

0.55

0.40

9.8

131

4

1.00

30/0.2

0.55

0.40

11.5

213
