S10 IYOI(c) 60 V

Applications :

  • These cables are flame retardant, low smoke and halogen free, used for indoor telecommunication.

Standards :

  • IEC 60092-359 IEC 60332-1
    IEC 60332-3-22 IEC 60754-1,2
    IEC 61034-1,2 NEK 606:2004

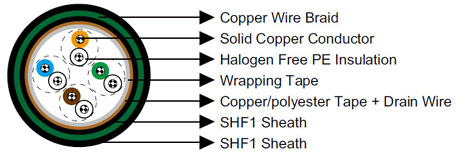

Construction :

  • Conductors : Solid tinned copper, 0.5mm.
  • Insulation : Halogen-free thermoplastic compound PE.
  • Twinning : Colour coded cores twisted together. Pairs are cross-stranded to finished cable or 10 pair units. The units are stranded to 20 - 30 - 50 pair cables. 2 pair is stranded as a star quad.
  • Wrapping : Polyester tape.
  • Collective Shielding : The cable core is screened by copper backed polyester tape in contact with a 0.5mm solid tinned drain wire.
  • Bedding : Halogen-free thermoplastic compound, type SHF1, coloured grey.
  • Armour : Copper wire braid.
  • Outer Sheath : Halogen-free thermoplastic compound, type SHF1, coloured grey.

Electrical Characteristics :

  • Nominal Conductor Diameter mm 0.5
    Maximum Resistant@20℃ Ω/km 95
    Nominal Inductance@1KHz MH/km 0.61
    Mutual Capacitance 1-pair cable nF/km 90
    Mutual Capacitance 2-pair cable nF/km 80
    Mutual Capacitance 4-pair and above cable nF/km 70
    Operating Voltage V 60

Mechanical and Thermal Properties :

  • Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
  • Temperature Range : -10℃ ~ +60℃.

Dimensions and Weight :

Construction No. of elements×No. of cores in element×Core diameter
(mm)
Nominal Insulation Thickness
mm
Nominal Sheath Thickness
mm
Nominal Overall Diameter
mm
Nominal Weight
kg/km
Inner Outer
1×2×0.5 0.2 1.2 1.2 8.0 95
2×2×0.5 0.2 1.2 1.2 9.0 110
4×2×0.5 0.2 1.2 1.2 10.0 145
10×2×0.5 0.2 1.5 1.5 12.0 200
20×2×0.5 0.2 1.5 1.5 15.0 330
30×2×0.5 0.2 1.5 1.5 17.0 430
50×2×0.5 0.2 1.5 1.5 20.0 580
