Application

The cables are designed for transmission of low frequent signals up to 90 KHz through symmetric circuits in railway networks, and are suitable for laying directly into the ground or in ducts.

Standards

● Dlk 1.013.109y
● Dlk 1.013.110y

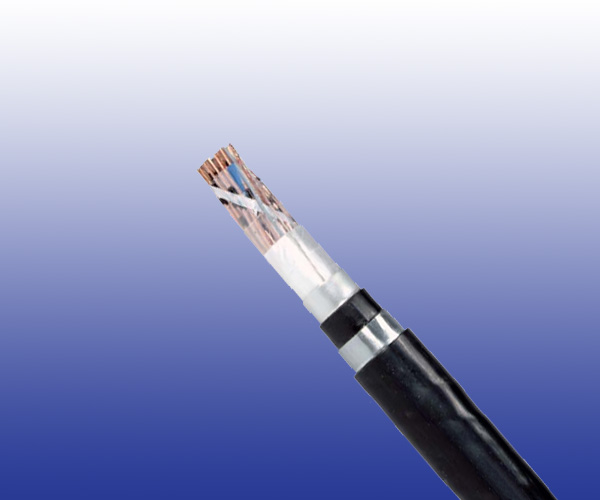

Construction

Conductors
Solid Annealed copper, 0.9 or 1.4 mm nominal diameter.

Insulation
Solid polyethylene.

Cabling Element
Four insulated conductors are twisted together to form a quad.

Stranding
Quads are helically stranded in concentric layers. Cables from 7 quads on, have two extra conductors of 0.5mm with perforated insulation (surveillance conductors).

Core Wrapping
Plastic tape(s) with overlapping.

IMoisture Barrier
One laminated sheath made of aluminium tape (0.15mm) coated with PE-Copolymer on at least one side is applied with longitudinally overlap.

Inner Sheath
Low density polyethylene.

Electromagnetic Shield
One helically applied steel tape (0.2-0.3mm) or two helically applied steel tapes (0.1mm).

Outer Sheath
Low density polyethylene.

Type Codes

A– outdoor cable
2Y- solid PE conductor insulation
(L)2Y- inner laminated PE sheath
B- steel tape armor
2Y- PE outer sheath
S- signal cable
LG- layer stranding
H(n)- operating capacity

Ring marking of Quad

The single core is identifi ed by black ring markings:
Side Circuit 1: a-wire, without marking
b-wire, 1 mark distance 17mm
Side Circuit 2: a-wire, 2 marks distance 34mm
b-wire, 2 marks distance 17mm

Electrical Characteristics at 20℃

Nominal Conductor Diameter	mm	0.9	1.4
Maximum Conductor Resistance	Ω/km	56.6	23.4
Minimum Insulation Resistance @500 V DC (1min)	MΩ.km	1000	1000
Maximum Conductor Capacitance @800Hz (AC)	nF/km	45	45
Maximum Capacitance Unbalance @800Hz
K1 (100% / 50% all values)	pF/km	650/150	650/150
K9-12 neighboured quads	pF/km	500/150	500/150
K9-12 over-neighboured quads	pF/km	150	150
ea1/2	pF/km	1300	1300
Miniumum Far-end Crosstalk Attenuation @90KHz
100% / 80% all values	dB/km	58/62	33/45
Maximum Attenuation @90KHz	dB/km	3.3	2.6
Dielectric Strength, conductor to conductor (DC voltage 1min)	V	3535	3535
Surveillance Conductors
Loop resistance, maximum	Ω/km	190	190
Insulation resistance
- dry cable core, minimum	MΩ.km	1000	1000
- wet cable core, maximum	KΩ.km	30	30
Operating Voltage AC/DC	V	420/600	420/600
Test Voltage 50 Hz 1 min
Core to Core	Veff	2500	2500
Core to Screen	Veff	2500	2500

Mechanical and Thermal Properties

Minimum Bending Radius: 10×OD
Temperature Range: -40℃ to +60℃ (during operation); -10℃ +60℃ (during installation)

Dimensions And Weight

Cable Code	Number of Quads	Nominal Sheath Thickness mm		Nominal Overall Diameter mm	Nominal Weight kg/km
		Inner	Outer
0.9mm Conductor, 1.8mm Insulated Wire
RS109y-2Y(L)2YB2Y-1Q0.9-S(H45)	1	1.3	1.2	12.0	170
RS109y-2Y(L)2YB2Y-3Q0.9-S(H45)	3	1.3	1.2	17.0	310
RS109y-2Y(L)2YB2Y-5Q0.9-S(H45)	5	1.3	1.2	19.0	410
RS109y-2Y(L)2YB2Y-7Q0.9-S(H45)	7	1.3	1.2	21.0	500
RS109y-2Y(L)2YB2Y-10Q0.9-S(H45)	10	1.3	1.2	24.0	640
RS109y-2Y(L)2YB2Y-14Q0.9-S(H45)	14	1.3	1.2	27.0	800
1.4mm Conductor, 2.8mm Insulated Wire
RS109y-2Y(L)2YB2Y-1Q1.4-S(H45)	1	1.3	1.2	14.0	240
RS109y-2Y(L)2YB2Y-3Q1.4-S(H45)	3	1.3	1.2	21.0	490
RS109y-2Y(L)2YB2Y-5Q1.4-S(H45)	5	1.3	1.2	24.0	710
RS109y-2Y(L)2YB2Y-7Q1.4-S(H45)	7	1.3	1.2	26.0	880
RS109y-2Y(L)2YB2Y-10Q1.4-S(H45)	10	1.3	1.2	33.0	1190
RS109y-2Y(L)2YB2Y-14Q1.4-S(H45)	14	1.3	1.2	36.5	1550
