Chinese Standard Rolling Stock Cables
100°C Single Core Cables
DCEYH, DCEYHR, DCEH/3-100 250V, 750V, 1.5kV, 3kV
Application :
-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where
handling and installation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.
Construction :
Conductor
Tinned annealed copper wires
Separator (if available)
Insulation
EPDM insulation
Sheath
CSM Sheath
 |

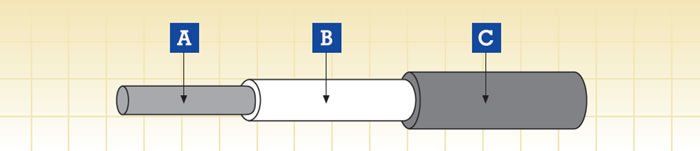

A. Conductor B. Insulation C. Sheath |
Electrical & Mechanical Properties :
| Nominal Voltage |
250V, 750V, 1.5kV, 3kV |
| Long-term Working Temperature |
100°C |
| Lowest Operation Temperature |
-25°C |
| Minimum Bending Radius |
6 x Overall Diameter (OD≤20mm); 8 x Overall Diameter (OD≥20mm) |
Fire Performance :
| Flame Retardant |
GB/T18380.1-2001 |
DCEYH 250V :
| Nominal Cross- Sectional Area |
Conductor Construction |
Nominal Insulation Thickness |
Maximum Overall Diameter |
Weight |
Maximum Conductor Resistance 20°C |
| mm² |
No/mm |
mm |
mm |
kg/km |
Ω/km |
| 0.5 |
- |
0.4 |
2.8 |
12 |
40.1 |
| 0.75 |
7/0.37 |
0.4 |
3.2 |
15 |
24.8 |
| 1.0 |
7/0.43 |
0.4 |
3.2 |
19 |
18.7 |
| 1.5 |
19/0.32 |
0.4 |
3.5 |
25 |
12.5 |
| 2.5 |
19/0.41 |
0.4 |
4.3 |
36 |
7.59 |
DCEYHR 250V:
| Nominal Cross- Sectional Area |
Conductor Construction |
Nominal Insulation Thickness |
Maximum Overall Diameter |
Weight |
Maximum Conductor Resistance 20°C |
| mm2 |
No/mm |
mm |
mm |
kg/km |
O/km |
| 0.5 |
16/0.20 |
0.4 |
2.8 |
12 |
40.1 |
| 0.75 |
24/0.20 |
0.4 |
3.2 |
15 |
26.7 |
| 1.0 |
32/0.20 |
0.4 |
3.2 |
19 |
20.0 |
| 1.5 |
30/0.25(48/0.20) |
0.4 |
3.5 |
25 |
13.7 |
| 2.5 |
49/0.25(77/0.20) |
0.4 |
4.3 |
36 |
8.21 |
DCEYH 750V :
| Nominal Cross- Sectional Area |
Conductor Construction |
Nominal Insulation Thickness |
Maximum Overall Diameter |
Weight |
Maximum Conductor Resistance 20°C |
| mm2 |
No/mm |
mm |
mm |
kg/km |
O/km |
| 0.75 |
7/0.37 |
0.6 |
4.0 |
21 |
24.8 |
| 1.0 |
7/0.43 |
0.6 |
4.1 |
24 |
18.7 |
| 1.5 |
19/0.32 |
0.6 |
4.4 |
31 |
12.5 |
| 2.5 |
19/0.41 |
0.7 |
5.1 |
45 |
7.59 |
| 4 |
19/0.52 |
0.7 |
5.7 |
63 |
4.54 |
| 6 |
19/0.64 |
0.7 |
6.4 |
86 |
3.00 |
| 10 |
49/0.52 |
0.8 |
8.6 |
152 |
1.78 |
| 16 |
84/0.49 |
0.8 |
10.5 |
243 |
1.20 |
| 25 |
133/0.49 |
1.0 |
13.0 |
350 |
0.760 |
| 35 |
189/0.49 |
1.0 |
14.5 |
471 |
0.535 |
| 50 |
259/0.49 |
1.2 |
17.0 |
624 |
0.390 |
| 70 |
259/0.58 |
1.2 |
19.0 |
830 |
0.271 |
| 95 |
259/0.68 |
1.4 |
21.5 |
1137 |
0.197 |
| 120 |
336/0.67 |
1.4 |
23.5 |
1400 |
0.156 |
| 150 |
427/0.67 |
1.8 |
27.8 |
1817 |
0.123 |
| 185 |
570/0.67 |
1.8 |
29.5 |
2186 |
0.101 |
| 240 |
732/0.64 |
2.2 |
34.0 |
2683 |
0.0787 |
| 300 |
912/0.64 |
2.2 |
37.0 |
3462 |
0.0632 |
DCEYHR 750V
:
| Nominal Cross- Sectional Area |
Conductor Construction |
Nominal Insulation Thickness |
Maximum Overall Diameter |
Weight |
Maximum Conductor Resistance 20°C |
| mm² |
No/mm |
mm |
mm |
kg/km |
Ω/km |
| 0.75 |
24/0.20 |
0.6 |
4.0 |
21 |
26.7 |
| 1.0 |
32/0.20 |
0.6 |
4.1 |
24 |
20.0 |
| 1.5 |
30/0.25(48/0.20) |
0.6 |
4.4 |
31 |
13.7 |
| 2.5 |
49/0.25(77/0.20) |
0.7 |
5.1 |
45 |
8.21 |
| 4 |
56/0.30(128/0.20) |
0.7 |
5.7 |
63 |
5.09 |
| 6 |
84/0.30 |
0.7 |
6.4 |
86 |
3.39 |
| 10 |
84/0.40 |
0.8 |
8.6 |
152 |
1.95 |
| 16 |
126/0.40 |
0.8 |
10.5 |
243 |
1.24 |
| 25 |
196/0.40 |
1.0 |
13.0 |
350 |
0.795 |
| 35 |
276/0.40 |
1.0 |
14.5 |
471 |
0.565 |
| 50 |
396/0.40 |
1.2 |
17.0 |
624 |
0.393 |
| 70 |
380/0.49 |
1.2 |
19.0 |
830 |
0.277 |
| 95 |
513/0.49 |
1.4 |
21.5 |
1137 |
0.210 |
| 120 |
630/0.49 |
1.4 |
23.5 |
1400 |
0.164 |
| 150 |
777/0.49 |
1.8 |
27.8 |
1817 |
0.132 |
| 185 |
976/0.49 |
1.8 |
29.5 |
2186 |
0.108 |
| 240 |
1281/0.49 |
2.2 |
34.0 |
2683 |
0.0817 |
| 300 |
1586/0.49 |
2.2 |
37.0 |
3462 |
0.0654 |
DCEH/3-100 750V
:
| Nominal Cross- Sectional Area |
Conductor Construction |
Nominal Insulation Thickness |
Maximum Overall Diameter |
Weight |
Maximum Conductor Resistance 20°C |
| mm² |
No/mm |
mm |
mm |
kg/km |
Ω/km |
| 0.5 |
16/0.20(28/0.15) |
0.6 |
4.4 |
17 |
40.1 |
| 0.75 |
24/0.20(42/0.15) |
0.6 |
4.7 |
21 |
26.7 |
| 1.0 |
32/0.20(56/0.15) |
0.6 |
4.9 |
24 |
20.0 |
| 1.5 |
30/0.25(85/0.15) |
0.6 |
5.4 |
31 |
13.7 |
| 2.5 |
50/0.25(140/0.15) |
0.7 |
5.2 |
45 |
8.21 |
| 4 |
56/0.30(228/0.15) |
0.7 |
6.8 |
63 |
5.09 |
| 6 |
84/0.30(189/0.20) |
0.7 |
7.8 |
86 |
3.39 |
| 10 |
80/0.40(324/0.20) |
0.8 |
9.0 |
152 |
1.95 |
| 16 |
126/0.40(513/0.20) |
0.8 |
10.5 |
243 |
1.24 |
| 25 |
196/0.40(783/0.20) |
1.0 |
13.0 |
350 |
0.795 |
| 35 |
276/0.40(1107/0.20) |
1.0 |
14.5 |
471 |
0.565 |
| 50 |
396/0.40(702/0.30) |
1.2 |
17.0 |
624 |
0.393 |
| 70 |
360/0.50(999/0.30) |
1.2 |
19.5 |
830 |
0.277 |
| 95 |
475/0.50(1332/0.30) |
1.4 |
21.5 |
1137 |
0.210 |
| 120 |
608/0.50(1702/0.30) |
1.4 |
23.5 |
1400 |
0.164 |
| 150 |
756/0.50(2109/0.30) |
1.8 |
28.0 |
1817 |
0.132 |
| 185 |
925/0.50(1443/0.40) |
1.8 |
29.5 |
2186 |
0.108 |
| 240 |
1221/0.50(1891/0.40) |
2.2 |
34.0 |
2683 |
0.0817 |
| 300 |
1525/0.50(2379/0.40) |
2.2 |
37.0 |
3462 |
0.0654 |
DCEYH 1500V
:
| Nominal Cross- Sectional Area |
Conductor Construction |
Nominal Insulation Thickness |
Maximum Overall Diameter |
Weight |
Maximum Conductor Resistance 20°C |
| mm² |
No/mm |
mm |
mm |
kg/km |
Ω/km |
| 1.0 |
7/0.43 |
0.8 |
4.9 |
32 |
18.7 |
| 1.5 |
19/0.32 |
0.8 |
5.3 |
40 |
12.5 |
| 2.5 |
19/0.41 |
0.9 |
6.2 |
58 |
7.59 |
| 4 |
19/0.52 |
0.9 |
6.8 |
77 |
4.54 |
| 6 |
19/0.64 |
0.9 |
7.5 |
101 |
3.0 |
| 10 |
49/0.52 |
1.0 |
9.5 |
169 |
1.78 |
| 16 |
84/0.49 |
1.0 |
11.0 |
250 |
1.20 |
| 25 |
133/0.49 |
1.2 |
13.5 |
361 |
0.76 |
| 35 |
189/0.49 |
1.2 |
15.0 |
483 |
0.535 |
| 50 |
259/0.49 |
1.4 |
17.9 |
651 |
0.390 |
| 70 |
259/0.58 |
1.4 |
19.0 |
864 |
0.271 |
| 95 |
259/0.68 |
1.6 |
22.5 |
1177 |
0.197 |
| 120 |
336/0.67 |
1.6 |
24.0 |
1443 |
0.156 |
| 150 |
427/0.67 |
2.0 |
27.0 |
1840 |
0.123 |
| 185 |
570/0.67 |
2.0 |
29.0 |
2211 |
0.101 |
| 240 |
732/0.64 |
2.4 |
35.0 |
2926 |
0.0787 |
| 300 |
912/0.64 |
2.4 |
38.0 |
3529 |
0.0632 |
DCEYHR 1500V
:
| Nominal Cross- Sectional Area |
Conductor Construction |
Nominal Insulation Thickness |
Maximum Overall Diameter |
Weight |
Maximum Conductor Resistance 20°C |
| mm² |
No/mm |
mm |
mm |
kg/km |
Ω/km |
| 1.0 |
32/0.20 |
0.8 |
4.9 |
32 |
20.0 |
| 1.5 |
30/0.25(48/0.20) |
0.8 |
5.3 |
40 |
13.7 |
| 2.5 |
49/0.25(77/0.20) |
0.9 |
6.2 |
58 |
8.21 |
| 4 |
56/0.30(128/0.20) |
0.9 |
6.8 |
77 |
5.09 |
| 6 |
84/0.30 |
0.9 |
7.5 |
101 |
3.39 |
| 10 |
84/0.40 |
1.0 |
9.5 |
169 |
1.95 |
| 16 |
126/0.40 |
1.0 |
11.0 |
250 |
1.24 |
| 25 |
196/0.40 |
1.2 |
13.5 |
361 |
0.795 |
| 35 |
276/0.40 |
1.2 |
15.0 |
483 |
0.565 |
| 50 |
396/0.40 |
1.4 |
17.9 |
651 |
0.393 |
| 70 |
380/0.49 |
1.4 |
19.0 |
864 |
0.277 |
| 95 |
513/0.49 |
1.6 |
22.5 |
1177 |
0.210 |
| 120 |
630/0.49 |
1.6 |
24.0 |
1443 |
0.164 |
| 150 |
777/0.49 |
2.0 |
27.0 |
1840 |
0.132 |
| 185 |
976/0.49 |
2.0 |
29.0 |
2211 |
0.108 |
| 240 |
1281/0.49 |
2.4 |
35.0 |
2926 |
0.0817 |
| 300 |
1586/0.49 |
2.4 |
38.0 |
3529 |
0.0654 |
DCEH/3-100 1500V
:
| Nominal Cross- Sectional Area |
Conductor Construction |
Nominal Insulation Thickness |
Maximum Overall Diameter |
Weight |
Maximum Conductor Resistance 20°C |
| mm² |
No/mm |
mm |
mm |
kg/km |
Ω/km |
| 1.0 |
32/0.20(56/0.15) |
0.8 |
6.0 |
32 |
20.0 |
| 1.5 |
30/0.25(85/0.15) |
0.8 |
6.6 |
40 |
13.7 |
| 2.5 |
50/0.25(140/0.15) |
0.9 |
7.6 |
58 |
8.21 |
| 4 |
56/0.30(228/0.15) |
0.9 |
8.2 |
77 |
5.09 |
| 6 |
84/0.30(189/0.20) |
0.9 |
8.8 |
101 |
3.39 |
| 10 |
84/0.40(324/0.20) |
1.0 |
9.8 |
169 |
1.95 |
| 16 |
126/0.40(513/0.20) |
1.0 |
11.0 |
250 |
1.24 |
| 25 |
196/0.40(783/0.20) |
1.2 |
13.5 |
361 |
0.795 |
| 35 |
276/0.40(1107/0.20) |
1.2 |
15.0 |
483 |
0.565 |
| 50 |
396/0.40(702/0.30) |
1.4 |
18.0 |
651 |
0.393 |
| 70 |
360/0.50(999/0.30) |
1.4 |
19.5 |
864 |
0.277 |
| 95 |
475/0.50(1332/0.30) |
1.6 |
22.5 |
1177 |
0.210 |
| 120 |
608/0.50(1702/0.30) |
1.6 |
24.5 |
1443 |
0.164 |
| 150 |
756/0.50(2109/0.30) |
2.0 |
28.0 |
1840 |
0.132 |
| 185 |
925/0.50(1443/0.40) |
2.0 |
30.0 |
2211 |
0.101 |
| 240 |
1221/0.50(1891/0.40) |
2.4 |
35.0 |
2926 |
0.0817 |
| 300 |
1525/0.50(2379/0.40) |
2.4 |
38.0 |
3529 |
0.0654 |
DCEYH 3000V
:
| Nominal Cross- Sectional Area |
Conductor Construction |
Nominal Insulation Thickness |
Maximum Overall Diameter |
Weight |
Maximum Conductor Resistance 20°C |
| mm² |
No/mm |
mm |
mm |
kg/km |
Ω/km |
| 2.5 |
19/0.41 |
1.4 |
8.0 |
83 |
7.59 |
| 4 |
19/0.52 |
1.4 |
8.6 |
104 |
4.54 |
| 6 |
19/0.64 |
1.4 |
9.2 |
131 |
3.0 |
| 10 |
49/0.52 |
1.6 |
11.2 |
205 |
1.78 |
| 16 |
84/0.49 |
1.6 |
15.5 |
281 |
1.20 |
| 25 |
133/0.49 |
1.8 |
15.5 |
410 |
0.76 |
| 35 |
189/0.49 |
1.8 |
17.0 |
539 |
0.535 |
| 50 |
259/0.49 |
2.0 |
20.0 |
733 |
0.390 |
| 70 |
259/0.58 |
2.0 |
22.0 |
954 |
0.271 |
| 95 |
259/0.68 |
2.2 |
24.5 |
1200 |
0.197 |
| 120 |
336/0.67 |
2.2 |
26.5 |
1556 |
0.156 |
| 150 |
427/0.67 |
2.6 |
30.0 |
1966 |
0.123 |
| 185 |
570/0.67 |
2.6 |
32.0 |
2348 |
0.101 |
| 240 |
732/0.64 |
3.0 |
37.0 |
3089 |
0.0787 |
| 300 |
912/0.64 |
3.0 |
40.0 |
3702 |
0.0632 |
DCEYHR 3000V
:
| Nominal Cross- Sectional Area |
Conductor Construction |
Nominal Insulation Thickness |
Maximum Overall Diameter |
Weight |
Maximum Conductor Resistance 20°C |
| mm² |
No/mm |
mm |
mm |
kg/km |
Ω/km |
| 2.5 |
49/0.25(77/0.20) |
1.4 |
8.0 |
83 |
8.21 |
| 4 |
56/0.30(128/0.20) |
1.4 |
8.6 |
104 |
5.09 |
| 6 |
84/0.30 |
1.4 |
9.2 |
131 |
3.39 |
| 10 |
84/0.40 |
1.6 |
11.2 |
205 |
1.95 |
| 16 |
126/0.40 |
1.6 |
15.5 |
281 |
1.24 |
| 25 |
196/0.40 |
1.8 |
15.5 |
410 |
0.795 |
| 35 |
276/0.40 |
1.8 |
17.0 |
539 |
0.565 |
| 50 |
396/0.40 |
2.0 |
20.0 |
733 |
0.393 |
| 70 |
380/0.49 |
2.0 |
22.0 |
954 |
0.277 |
| 95 |
513/0.49 |
2.2 |
24.5 |
1200 |
0.210 |
| 120 |
630/0.49 |
2.2 |
26.5 |
1556 |
0.164 |
| 150 |
777/0.49 |
2.6 |
30.0 |
1966 |
0.132 |
| 185 |
976/0.49 |
2.6 |
32.0 |
2348 |
0.108 |
| 240 |
1281/0.49 |
3.0 |
37.0 |
3089 |
0.0817 |
| 300 |
1586/0.49 |
3.0 |
40.0 |
3702 |
0.0654 |
DCEH/3-100 3000V
:
| Nominal Cross- Sectional Area |
Conductor Construction |
Nominal Insulation Thickness |
Maximum Overall Diameter |
Weight |
Maximum Conductor Resistance 20°C |
| mm² |
No/mm |
mm |
mm |
kg/km |
Ω/km |
| 2.5 |
50/0.25(140/0.15) |
1.4 |
8.6 |
83 |
8.21 |
| 4 |
56/0.30(228/0.15) |
1.4 |
9.2 |
104 |
5.09 |
| 6 |
84/0.30(189/0.20) |
1.4 |
10.0 |
131 |
3.39 |
| 10 |
80/0.40(324/0.20) |
1.6 |
12.5 |
205 |
1.95 |
| 16 |
126/0.40(513/0.20) |
1.6 |
15.5 |
281 |
1.24 |
| 25 |
196/0.40(783/0.20) |
1.8 |
15.5 |
410 |
0.795 |
| 35 |
276/0.40(1107/0.20) |
1.8 |
17.0 |
539 |
0.565 |
| 50 |
396/0.40(702/0.30) |
2.0 |
20.0 |
733 |
0.393 |
| 70 |
360/0.50(999/0.30) |
2.0 |
22.0 |
954 |
0.277 |
| 95 |
475/0.50(1332/0.30) |
2.2 |
24.5 |
1200 |
0.210 |
| 120 |
608/0.50(1702/0.30) |
2.2 |
26.5 |
1556 |
0.164 |
| 150 |
756/0.50(2109/0.30) |
2.6 |
30.0 |
1966 |
0.132 |
| 185 |
925/0.50(1443/0.40) |
2.6 |
32.0 |
2348 |
0.108 |
| 240 |
1221/0.50(1891/0.40) |
3.0 |
37.0 |
3089 |
0.0817 |
| 300 |
1525/0.50(2379/0.40) |
3.0 |
40.0 |
3702 |
0.0654 |
