EN 50382 High Temperature Cable
FIREROL FRL-HT-6SURI
3.6/6 kV - High Temperature Single core cables with Reinforced Insulation

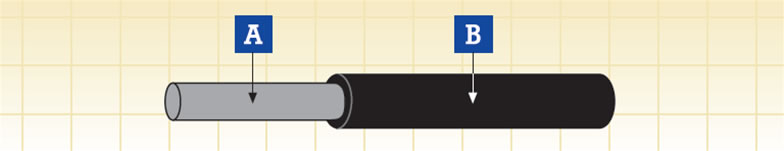

Construction
Conductor
extra flexible tinned annealed copper wires(red copper only for 150° C core temperature)class 6 according to HD 383
Insulation
silicon rubber according to EN 50382-1 (EI 112)
Electrical & Mechanical Properties
| Nominal Voltage | 3.6/6 kV |
| Maximum Conductor Temperature | +120/+150 deg (fixed installation) |
| Minimum Permissible Ambient Temperature | -25/-40 deg (fixed installation) |
| Bending Radius | 3 x Overall Diameter (D<12mm); |
| 4 x Overall Diameter (D>12mm) |
Chemical & Environmental Properties
| EN 60684-2 | No fluorine |
| EN 50305; EN 60811-2-1 | Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 | Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 | Hazard levels HL1, HL2/HL3, HL4 |
| DIN 5510-2 | Protection level 1/2/3/4 |
| BS 6853 | Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 | FO |
Fire Performance in general
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 |
Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 |
Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074;NF C 20-454; VDE 0472 Teil 815 | Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074;NF C 20-453; VDE 0472 Teil 813 | Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 | Low Toxicity |
| NFF 16101; NFF 63808; BS6853 | Smoke index |
FRL-HT-6SURI 3.6/6 kV
| NOMINAL CROSS-SECTIONAL AREA (a) | CONDUCTOR DIAMETER (a) | MIN. MEAN THICKNESS OF INSULATION | OVERALL DIAMETER | WEIGHT | RESISTANCE OF CONDUCTOR AT 20°C | MIN. INSULATION RESISTANCE | |||
| min | max | TINNED CONDUCTOR | PLAIN CONDUCTOR | AT +20℃ MIN. | AT +150℃MIN. | ||||
| mm2 | mm | mm | mm | mm | kg/km | Ω/km | Ω/km | MΩ·km | MΩ·km |
| 50 | 9.2 | 3.0 | 15.2 | 17.8 | 560 | 0.393 | 0.386 | 340 | 0.70 |
| 70 | 11.0 | 3.0 | 16.9 | 19.8 | 770 | 0.277 | 0.272 | 300 | 0.60 |
| 95 | 12.5 | 3.0 | 18.3 | 21.4 | 970 | 0.210 | 0.206 | 270 | 0.55 |
| 120 | 14.2 | 3.1 | 20.1 | 23.5 | 1200 | 0.164 | 0.161 | 250 | 0.50 |
| 150 | 15.8 | 3.1 | 21.6 | 25.3 | 1480 | 0.132 | 0.129 | 220 | 0.45 |
| 185 | 17.5 | 3.2 | 23.4 | 27.4 | 1800 | 0.108 | 0.106 | 210 | 0.40 |
(a)= For information,indicative only
