EN 50264 Standard Wall Power & Control Cable
FIREROL FRL-SW-05M/FRL-SW-1M
FIREROL FRL-SW-05M/FRL-SW-1M

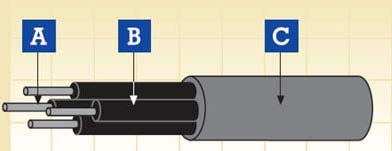

A. Conductor B. Insulation C. Sheath
Application
-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.
Construction
Conductor
flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5
Insulation
LSZH elastomeric compound as defined in EN 50264-1 (EI 101 to EI 105)
Outer sheath
LSZH elastomeric compound as defined in EN 50264-1 (EM 101 to EM 104)
Electrical & Mechanical Properties
| Nominal Voltage | 300/500 V or 0.6/1 kV |
| Maximum Conductor Temperature | +90 deg (fixed installation) |
| Minimum Permissible Ambient Temperature | -25/-40 deg (fixed installation) |
| Bending Radius | 3 x Overall Diameter (D<12mm); |
| 4 x Overall Diameter (D>12mm) |
Chemical & Environmental Properties
| EN 60684-2 | No fluorine |
| EN 50305; EN 60811-2-1 | Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 | Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 | Hazard levels HL1, HL2/HL3, HL4 |
| DIN 5510-2 | Protection level 1/2/3/4 |
| BS 6853 | Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 | FO |
Fire Performance in general
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 |
Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 |
Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074;NF C 20-454; VDE 0472 Teil 815 | Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074;NF C 20-453; VDE 0472 Teil 813 | Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 | Low Toxicity |
| NFF 16101; NFF 63808; BS6853 | Smoke index |
FRL-SW-05M 300/500 V
| NUMBER AND NOMINAL CROSS SECTIONAL AREA (a) | COND UCTOR DIAM ETER (b) |
MIN. MEAN THICK NESS OF INSUL ATION |
DIAM ETER OF CORE (b) |
MAX WIRE DIAM ETER OF SCREEN |
MIN. MEAN THICKNESS OF SHEATH |
OVERALL DIAMETER UNSREENED | WEI GHT |
CONDUCTO RRESIS TANCE AT 20°C |
INSUL ATION RESIS TANCE AT 20°C |
INSUL ATION RESIS TANCE AT 50°C |
|
| EI 105 | EI 101- EI 104 | ||||||||||
| min | max | max | min | min | |||||||
| n x mm2 | mm | mm | mm | mm | mm | mm | mm | kg/km | Ω/km | MΩ·km | MΩ·km |
| 2x1 | 1.2 | 0.6 | 2.6 | 0.16 | 1.4 | 7.2 | 8.5 | 100 | 20.0 | 140 | 70 |
| 4x1 | 1.25 |
0.6 | 2.6 | 0.16 | 1.4 | 8.2 | 9.6 | 130 | 20.0 | 140 | 70 |
| 7x1 | 0.6 | 2.6 | 0.16 | 1.4 | 9.6 | 11.2 | 180 | 20.0 | 140 | 70 | |
| 9x1 | 0.6 | 2.6 | 0.21 | 1.4 | 11.5 | 13.4 | 220 | 20.0 | 140 | 70 | |
| 12x1 | 0.6 | 2.6 | 0.21 | 1.4 | 12.3 | 14.4 | 280 | 20.0 | 140 | 70 | |
| 19x1 | 0.6 | 2.6 | 0.26 | 1.4 | 14.5 | 16.6 | 400 | 20.0 | 140 | 70 | |
| 24x1 | 0.6 | 2.6 | 0.26 | 1.5 | 16.7 | 19.6 | 530 | 20.0 | 140 | 70 | |
| 32x1 | 0.6 | 2.6 | 0.26 | 1.6 | 18.5 | 21.7 | 660 | 20.0 | 140 | 70 | |
| 37x1 | 0.6 | 2.6 | 0.26 | 1.6 | 19.2 | 22.4 | 720 | 20.0 | 140 | 70 | |
| 40x1 | 0.6 | 2.6 | 0.26 | 1.6 | 19.9 | 23.3 | 750 | 20.0 | 140 | 70 | |
| 4x1.5 | 1.5 |
0.7 | 3.0 | 0.16 | 1.4 | 9.2 | 10.8 | 170 | 13.7 | 120 | 60 |
| 7x1.5 | 0.7 | 3.0 | 0.21 | 1.4 | 10.9 | 12.8 | 250 | 13.7 | 120 | 60 | |
| 9x1.5 | 0.7 | 3.0 | 0.21 | 1.4 | 13.1 | 15.3 | 310 | 13.7 | 120 | 60 | |
| 12x1.5 | 0.7 | 3.0 | 0.21 | 1.4 | 14.0 | 16.4 | 400 | 13.7 | 120 | 60 | |
| 19x1.5 | 0.7 | 3.0 | 0.26 | 1.5 | 16.5 | 19.4 | 570 | 13.7 | 120 | 60 | |
| 24x1.5 | 0.7 | 3.0 | 0.26 | 1.6 | 19.5 | 22.8 | 760 | 13.7 | 120 | 60 | |
| 32x1.5 | 0.7 | 3.0 | 0.26 | 1.7 | 21.5 | 25.2 | 940 | 13.7 | 120 | 60 | |
| 37x1.5 | 0.7 | 3.0 | 0.26 | 1.7 | 22.4 | 26.2 | 1040 | 13.7 | 120 | 60 | |
| 4x2.5 | 1.95 |
0.8 | 3.7 | 0.21 | 1.4 | 10.7 | 12.5 | 240 | 8.21 | 90 | 45 |
| 7x2.5 | 0.8 | 3.7 | 0.21 | 1.4 | 12.7 | 14.9 | 360 | 8.21 | 90 | 45 | |
| 9x2.5 | 0.8 | 3.7 | 0.26 | 1.5 | 15.6 | 18.3 | 450 | 8.21 | 90 | 45 | |
| 12x2.5 | 0.8 | 3.7 | 0.26 | 1.5 | 16.7 | 19.6 | 590 | 8.21 | 90 | 45 | |
| 19x2.5 | 0.8 | 3.7 | 0.26 | 1.6 | 19.7 | 23.1 | 860 | 8.21 | 90 | 45 | |
| 24x2.5 | 0.8 | 3.7 | 0.26 | 1.8 | 23.5 | 27.5 | 1150 | 8.21 | 90 | 45 | |
(a)= One earth conductor (green/yellow) can be included upon request
(b)= For information,indicative only
FRL-SW-1M 0.6/1 kV
| NUMBER AND NOMINAL CROSS SECTIONAL AREA (a) | COND UCTOR DIAM ETER (b) |
MIN. MEAN THICK NESS OF INSUL ATION |
DIAM ETER OF CORE (b) |
MAX WIRE DIAM ETER OF SCREEN |
MIN. MEAN THICKNESS OF SHEATH |
OVERALL DIAMETER UNSREENED | WEI GHT |
CONDUCTO RRESIS TANCE AT 20°C |
INSUL ATION RESIS TANCE AT 20°C |
INSUL ATION RESIS TANCE AT 50°C |
|
| min | max | max | min | min | |||||||
| n x mm2 | mm | mm | mm | mm | mm | mm | mm | Kg/km | mm | Ω/km | MΩ·km |
| TWO CORES | |||||||||||
| 1.5 | 1.5 | 0.8 | 3.0 | 3.5 | 1.4 | 8.5 | 9.9 | 140 | 13.7 | 150 | 75 |
| 2.5 | 1.95 | 0.8 | 3.4 | 3.9 | 1.4 | 9.3 | 10.9 | 180 | 8.21 | 130 | 65 |
| 4 | 2.5 | 0.8 | 3.9 | 4.6 | 1.4 | 10.3 | 12.1 | 230 | 5.09 | 110 | 55 |
| 6 | 3.0 | 0.9 | 4.6 | 5.4 | 1.4 | 11.8 | 13.9 | 300 | 3.39 | 90 | 45 |
| 10 | 3.9 | 1.1 | 5.8 | 6.8 | 1.4 | 14.3 | 16.7 | 480 | 1.95 | 85 | 45 |
| 16 | 5.0 | 1.1 | 7.2 | 8.5 | 1.5 | 16.5 | 19.4 | 630 | 1.24 | 70 | 35 |
| 25 | 6.4 | 1.3 | 8.6 | 10.0 | 1.6 | 20.1 | 23.5 | 920 | 0.795 | 65 | 35 |
| 35 | 7.7 | 1.3 | 10.2 | 11.5 | 1.7 | 22.7 | 26.6 | 1200 | 0.565 | 60 | 30 |
| 50 | 9.2 | 1.5 | 11.6 | 13.5 | 1.9 | 26.7 | 31.2 | 1670 | 0.393 | 55 | 30 |
THREE CORES |
|||||||||||
| 1.5 | 1.5 | 0.8 | 3.0 | 3.5 | 1.4 | 8.9 | 10.5 | 160 | 13.7 | 150 | 75 |
| 2.5 | 1.95 | 0.8 | 3.4 | 3.9 | 1.4 | 9.9 | 11.6 | 210 | 8.21 | 130 | 65 |
| 4 | 2.5 | 0.8 | 3.9 | 4.6 | 1.4 | 11.0 | 12.9 | 270 | 5.09 | 110 | 55 |
| 6 | 3.0 | 0.9 | 4.6 | 5.4 | 1.4 | 12.5 | 14.6 | 360 | 3.39 | 90 | 45 |
| 10 | 3.9 | 1.1 | 5.8 | 6.8 | 1.5 | 15.3 | 17.9 | 600 | 1.95 | 85 | 45 |
| 16 | 5.0 | 1.1 | 7.2 | 8.5 | 1.6 | 17.8 | 20.8 | 790 | 1.24 | 70 | 35 |
| 25 | 6.4 | 1.3 | 8.6 | 10.0 | 1.7 | 21.6 | 25.3 | 1170 | 0.795 | 65 | 35 |
| 35 | 7.7 | 1.3 | 10.2 | 11.5 | 1.8 | 24.4 | 28.6 | 1530 | 0.565 | 60 | 30 |
| 50 | 9.2 | 1.5 | 11.6 | 13.5 | 1.9 | 28.2 | 33.3 | 2120 | 0.393 | 55 | 30 |
| FOUR CORES | |||||||||||
| 1.5 | 1.5 | 0.8 | 3.0 | 3.5 | 1.4 | 9.7 | 11.3 | 190 | 13.7 | 150 | 75 |
| 2.5 | 1.95 | 0.8 | 3.4 | 3.9 | 1.4 | 10.7 | 12.5 | 250 | 8.21 | 130 | 65 |
| 4 | 2.5 | 0.8 | 3.9 | 4.6 | 1.4 | 11.9 | 14.0 | 330 | 5.09 | 110 | 55 |
| 6 | 3.0 | 0.9 | 4.6 | 5.4 | 1.4 | 13.7 | 16.1 | 450 | 3.39 | 90 | 45 |
| 10 | 3.9 | 1.1 | 5.8 | 6.8 | 1.5 | 16.9 | 19.8 | 740 | 1.95 | 85 | 45 |
| 16 | 5.0 | 1.1 | 7.2 | 8.5 | 1.6 | 19.6 | 22.9 | 980 | 1.24 | 70 | 35 |
| 25 | 6.4 | 1.3 | 8.6 | 10.0 | 1.8 | 24.1 | 28.2 | 1460 | 0.795 | 65 | 35 |
| 3X35+25 | 7.7/6.4 | 1.3/1.3 | 10.2 /8.6 |
11.5 /10.0 |
1.9 | 28.5 | 34.2 | 1610 | 0.565/0.795 | 60 | 30 |
| 3X50+25 | 9.2/6.4 | 1.5/1.3 | 11.6 /8.6 | 13.5 /10.0 |
2.0 | 33.4 | 40.0 | 2230 | 0.393/0.795 | 55 | 30 |
(a)= For information,indicative only
