Rolling Stock Cables
EN 50306 Thin Wall Instrumentation & Control Cable
FIREROL FRL-TW-05M-OS

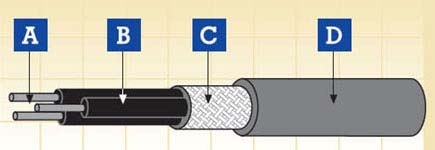

A.Conductor B.Insulation C.Screen D.Sheath
Application
-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.
Construction
Conductor
Tinned annealed copper wires as defined in EN 50306-2
Insulation
LSZH special compound
Overal screen
Tinned annealed copper wires
Outer sheath
LSZH special compound (S1 & S2)
Electrical & Mechanical Properties
| Nominal Voltage | 300/500 V |
| Maximum Conductor Temperature | +120/+150 deg (fixed installation) |
| Minimum Permissible Ambient Temperature | -25/-40 deg (fixed installation) |
| Bending Radius | 10 x Overall Diameter |
Chemical & Environmental Properties
| EN 60684-2 | No fluorine |
| EN 50305; EN 60811-2-1 | Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 | Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 | Hazard levels HL1, HL2/HL3, HL4 |
| DIN 5510-2 | Protection level 1/2/3/4 |
| BS 6853 | Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 | FO |
Fire Performance in general
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 |
Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 |
Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074;NF C 20-454; VDE 0472 Teil 815 | Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074;NF C 20-453; VDE 0472 Teil 813 | Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 | Low Toxicity |
| NFF 16101; NFF 63808; BS6853 | Smoke index |
FRL-TW-05M-OS 300/500 V
NUMBER OF CORES AND NOMINAL CROSS SECTION |
MINIMUM THICKNESS OF SHEATH AT ANY POINT | OVERALL DIAMETER |
WEIGHT | |
(mm2) |
(mm) | min. (mm) | max. (mm) | (kg/km) |
2 x 0.5 |
0.20 | 3.5 | 4.3 | 30 |
3 x 0.5 |
0.20 | 3.7 | 4.5 | 30 |
4 x 0.5 |
0.20 | 4.0 | 5.0 | 40 |
2 x 0.75 |
0.20 | 3.9 | 4.7 | 30 |
3 x 0.75 |
0.20 | 4.0 | 5.0 | 40 |
4 x 0.75 |
0.20 | 4.5 | 5.5 | 60 |
2 x 1 |
0.20 | 4.2 | 5.2 | 40 |
3 x 1 |
0.20 | 4.5 | 5.5 | 55 |
4 x 1 |
0.20 | 5.0 | 6.0 | 70 |
2 x 1.5 |
0.20 | 5.1 | 6.1 | 60 |
3 x 1.5 |
0.20 | 5.4 | 6.4 | 80 |
4 x 1.5 |
0.20 | 6.0 | 7.0 | 100 |
2 x 2.5 |
0.20 | 6.4 | 7.4 | 90 |
3 x 2.5 |
0.20 | 6.8 | 7.8 | 120 |
4 x 2.5 |
0.20 | 7.5 | 8.5 | 140 |
