Rolling Stock Cables
EN 50306 Thin Wall Instrumentation & Control Cable
FIREROL FRL-TW-05M-SW

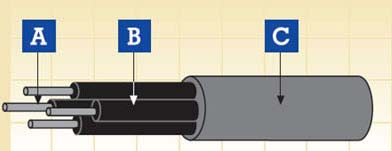

A. Conductor B. Insulation C. Sheath
Application
-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.
Construction
Conductor
Tinned annealed copper wires as defined in EN 50306-2
Insulation
LSZH special compound
Outer sheath
LSZH special compound (S2. EM101- EM104)
Electrical & Mechanical Properties
| Nominal Voltage | 300/500 V |
| Maximum Conductor Temperature | +120/+150 deg (fixed installation) |
| Minimum Permissible Ambient Temperature | -25/-40 deg (fixed installation) |
| Bending Radius | 3 x Overall Diameter (D<12mm); |
| 4 x Overall Diameter (D>12mm) |
Chemical & Environmental Properties
| EN 60684-2 | No fluorine |
| EN 50305; EN 60811-2-1 | Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 | Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 | Hazard levels HL1, HL2/HL3, HL4 |
| DIN 5510-2 | Protection level 1/2/3/4 |
| BS 6853 | Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 | FO |
Fire Performance in general
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 |
Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 |
Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074;NF C 20-454; VDE 0472 Teil 815 | Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074;NF C 20-453; VDE 0472 Teil 813 | Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 | Low Toxicity |
| NFF 16101; NFF 63808; BS6853 | Smoke index |
FRL-TW-05M-SW 300/500 V
| NUMBER OF CORES AND NOMINAL CROSS SECTION | MINIMUM THICKNESS OF SHEATH AT ANY POINT |
OVERALL DIAMETER |
WEIGHT |
|
| (mm2) | (mm) |
min. (mm) |
max. (mm) |
(kg/km) |
| 4 x 0.5 | 0.42 |
4.1 |
5.1 |
30 |
| 7 x 0.5 | 0.42 |
4.9 |
5.9 |
50 |
| 13 x 0.5 | 0.56 |
7.3 |
8.3 |
100 |
| 19 x 0.5 | 0.56 |
8.1 |
9.1 |
140 |
| 37 x 0.5 | 0.56 |
10.8 |
12.0 |
250 |
|
|
|
|
|
| 4 x 0.75 | 0.42 |
4.6 |
5.6 |
40 |
| 7 x 0.75 | 0.42 |
5.5 |
6.5 |
70 |
| 13 x 0.75 | 0.56 |
8.2 |
9.2 |
130 |
| 19 x 0.75 | 0.56 |
9.0 |
10.2 |
180 |
| 37 x 0.75 | 0.56 |
12.2 |
13.4 |
340 |
| 48 x 0.75 | 0.56 |
13.9 |
15.5 |
440 |
|
|
|
|
|
| 4 x 1.0 | 0.42 |
4.9 |
5.9 |
50 |
| 7 x 1.0 | 0.42 |
6.0 |
7.0 |
90 |
| 13 x 1.0 | 0.56 |
8.7 |
9.9 |
160 |
| 19 x 1.0 | 0.56 |
9.8 |
11.0 |
230 |
| 37 x 1.0 | 0.56 |
13.3 |
14.5 |
430 |
|
|
|
|
|
| 4 x 1.5 | 0.42 |
6.0 |
7.0 |
80 |
| 7 x 1.5 | 0.56 |
7.7 |
9.8 |
140 |
| 13 x 1.5 | 0.56 |
10.7 |
11.9 |
250 |
| 19 x 1.5 | 0.56 |
12.0 |
13.2 |
350 |
| 37 x 1.5 | 0.56 |
16.2 |
17.8 |
650 |
|
|
|
|
|
| 2 x 2.5 | 0.56 |
6.7 |
7.7 |
70 |
| 3 x 2.5 | 0.56 |
7.7 |
8.1 |
110 |
| 4 x 2.5 | 0.56 |
7.9 |
8.9 |
140 |
