 FIREROL FRL-TW-05MP-SW-IOS

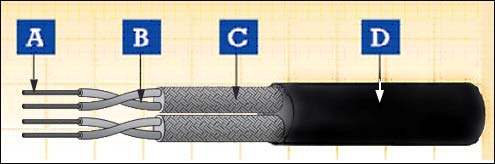

                                   A.Conductor      B.Insulation       C.Screen          D.Sheath

Application

-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.

-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

Construction

Conductor
Tinned annealed copper wires as defined in EN 50306-2

Insulation
LSZH special compound

Overall screen
Tinned annealed copper wires

Pair screen
Individual screened and sheathed. Screened according to EN 50306-3; Sheathed according to EN 50306-3 (S1. S2)

Pair Identification
Pairs numbered according to EN 50306-4

Outer sheath
LSZH special compound (S2. EM 101 - EM 104)

Electrical & Mechanical Properties

Nominal Voltage	300/500 V
Maximum Conductor Temperature	+90/+105 deg (fixed installation)
Minimum Permissible Ambient Temperature	-25/-40 deg (fixed installation)
Bending Radius	10 x Overall Diameter

Chemical & Environmental Properties

EN 60684-2	No fluorine
EN 50305; EN 60811-2-1	Resistance to mineral oil & fuel oil, acid & alkali
EN 50305	Resistance to ozone

Fire Performance for rolling stock application

EN 50306-2	Hazard levels HL1, HL2/HL3, HL4
DIN 5510-2	Protection level 1/2/3/4
BS 6853	Interior use 1a, 1b, II; Exterior use 1a, 1b, II
NF F 16-101	F0

Fire Performance in general

EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)	Vertical flame propogation for a single insulated wire or cable
EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804	Vertical flame spread of vertically mounted bunched wires or cables
EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816	Low Smoke Emission
EN 50267-2-1; IEC 60754-1; NF C 32-074;NF C 20-454; VDE 0472 Teil 815	Halogen Free
EN 50267-2-2/3; IEC 60754-2; NF C 32-074;NF C 20-453; VDE 0472 Teil 813	Low Corrosivity (Acidity & Conductivity)
EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853	Low Toxicity
NFF 16101; NFF 63808; BS6853	Smoke index

FRL-TW-05MP-SW-IOS  300/500 V

NUMBER OF CORES AND NOMINAL CROSS SECTION	MINIMUM THICKNESS OF SHEATH AT ANY POINT	OVERALL DIAMETER		WEIGHT
(mm2)	(mm)	min. (mm)	max. (mm)	(kg/km)
2 x 2 x 0.5	0.56	9.0	10.2	90
3 x 2 x 0.5	0.56	9.6	10.8	120
4 x 2 x 0.5	0.56	10.7	11.9	160
7 x 2 x 0.5	0.56	13.0	14.2	240
2 x 2 x 0.75	0.56	9.8	11.0	90
3 x 2 x 0.75	0.56	10.5	11.7	150
4 x 2 x 0.75	0.56	11.6	12.8	180
7 x 2 x 0.75	0.56	14.0	15.6	290
2 x 2 x 1.0	0.56	10.2	11.6	110
3 x 2 x 1.0	0.56	10.9	12.1	160
4 x 2 x 1.0	0.56	12.1	13.3	200
7 x 2 x 1.0	0.56	14.6	16.2	330
2 x 2 x 1.5	0.56	12.2	13.4	150
3 x 2 x 1.5	0.56	13.1	14.3	230
4 x 2 x 1.5	0.56	14.3	15.9	290
7 x 2 x 1.5	0.56	17.6	19.2	490
