Low Smoke Halogen Free Flame Retardant Rolling Stock Multicore Jumper Cables
WDZ-DCKPJ-100 300/500V

Application :

-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

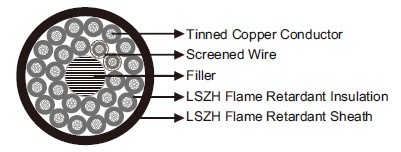

Construction :

Unscreened Conductors
Tinned copper wires with low smoke halogen free flame retardant
insulation
Screened Wires
2×1mm² tinned copper wires with low smoke halogen free flame
retardant insulation and screen.
Filler
Sheath
Low smoke halogen free flame retardant compound

Electrical & Mechanical Properties :

Nominal Voltage	300/500V
Long-term Working Temperature	100°C
Lowest Operation Temperature	-25°C
Minimum Bending Radius	6 x Overall Diameter

Fire Performance :

Flame Retardant	GB/T 18380.1-2001; GB/T 18380.3-2001 C
Low Corrosivity (Acidity & Conductivity)	GB/T17650.1-1998; GB/T17650.2-1998
Halogen Free	GB/T17650.1-1998; GB/T17650.2-1998
Low Smoke	GB/T17651.1-1998; GB/T17651.2-1998

WDZ-DCKPJ-100:

Number of conductor×Nominal Cross-Sectional Area	Conductor Construction	Nominal Insulation Thickness	Nominal Sheath Thickness	Nominal Overall Diameter	Maximum Conductor Resistance 20°C
mm²	No/mm	mm	mm	mm	Ω/km
24×1.5+2×1	24×48/0.20+2×32/0.20	0.8/0.6	2.0	25.3	13.7/20.0
