Low Smoke Halogen Free Flame Retardant Rolling Stock Multicore Jumper Cables
WDZ-DCKT-P-125 750V 2×2×1.25+5×2×1.25+3×3×1.25

Application :

-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

Construction :

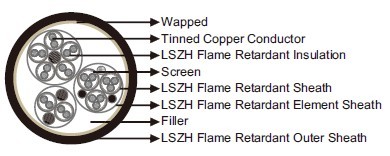

5×2×50/0.18mm² &2×2×1.25mm² Element
Tinned copper wires with low smoke halogen free flame retardant insulation. Two insulated wires are twisted together to form a pair. Every pair is screened and sheathed. Pairs are stranded with fillers and covered with an element sheath.
3×3×1.25mm² Element
Tinned copper wires with low smoke halogen free flame retardant insulation. There insulated wires are twisted together to form a triple. Every triple is screened and sheathed. Triples are stranded with fillers and covered with an element sheath.
Filler
Wrapped
Outer Sheath
Low smoke halogen free flame retardant compound.

Electrical & Mechanical Properties :

Nominal Voltage	750V
Long-term Working Temperature	125°C
Lowest Operation Temperature	-25°C
Minimum Bending Radius	6 x Overall Diameter

Fire Performance :

Flame Retardant	GB/T 18380.1-2001; GB/T 18380.3-2001 C
Low Corrosivity (Acidity & Conductivity)	GB/T17650.1-1998; GB/T17650.2-1998
Halogen Free	GB/T17650.1-1998; GB/T17650.2-1998
Low Smoke	GB/T17651.1-1998; GB/T17651.2-1998

WDZ-DCKT-P-125:

Number of conductor×Nominal Cross-Sectional Area	Conductor Construction	Nominal Insulation Thickness	Nominal Inner Sheath Thickness	Nominal Outer Sheath Thickness	Nominal Overall Diameter
mm²	No/mm	mm	mm	mm	mm
2×2×1.25+5×2×1.25 +3×3×1.25	2×2×50/0.18+5×2×50/0.1 8+3×3×50/0.18	0.8	0.8/1.0	3.5	56
