[FA-] MPY-S, MPYC-S, MPYCY-S

JIS Shipboard Cables

STANDARDS
JISC 3410-1999
IEC 60332-1
IEC 60332-3 Cat.A(for FA-type)

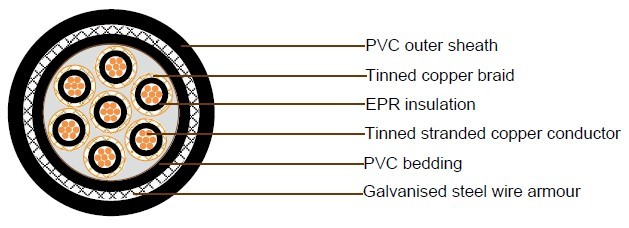

CABLE CONSTRUCTION

Conductor

M

Tinned annealed stranded copper, class 2 according to IEC 60228

Insulation

P

85°C EPR as per JIS C 3401

Individual shield

-S

Tinned copper wire braid



Cabling



Insulated conductors shall be cabled.
Flame retardant & non-hygroscopic fillers may be used

Bedding

Y

PVC as per JIS C 3401

Armor

C

Galvanized steel wire braid

Sheath

Y

PVC as per JIS C 3401

Core identification



Black No. on white insulation

Outer sheath color



Black

Cable Parameter

250V (FA-) MPY-S
No. of
cores		 Conductor Thick. of
insulation		 Dia. of
shield
wire		 Thick. of
bedding		 (FA-) MPY-S
Size Construction O.D Nom.
overall dia		 Tolerance Cable
Weight
mm² No./mm mm mm mm mm mm mm kg/km

2

1

7/0.43

1.29

0.7

0.12

1.1

9.9

0.4

150

4

1

7/0.43

1.29

0.7

0.12

1.2

11.6

0.5

230

7

1

7/0.43

1.29

0.7

0.12

1.3

13.9

0.6

350

12

1

7/0.43

1.29

0.7

0.12

1.4

18.2

0.8

570

19

1

7/0.43

1.29

0.7

0.12

1.5

21.5

0.9

840

27

1

7/0.43

1.29

0.7

0.12

1.7

26

1.1

1200

37

1

7/0.43

1.29

0.7

0.12

1.8

29.2

1.2

1600

44

1

7/0.43

1.29

0.7

0.12

2

33.2

1.4

2000

250V (FA-) MPYC-S

No. of
cores		 Conductor Thick. of
insulation		 Dia. of
shield
wire		 Thick. of
bedding		 Dia. of
steel wire		 (FA-) MPYC-S
Size Construction O.D Nom.
overall dia		 Tolerance Cable
Weight
mm² No./mm mm mm mm mm mm mm mm kg/km

2

1

7/0.43

1.29

0.7

0.12

1.1

0.3

11.2

0.4

210

4

1

7/0.43

1.29

0.7

0.12

1.2

0.3

12.9

0.5

300

7

1

7/0.43

1.29

0.7

0.12

1.3

0.3

15.2

0.6

435

12

1

7/0.43

1.29

0.7

0.12

1.4

0.3

19.5

0.8

685

19

1

7/0.43

1.29

0.7

0.12

1.5

0.3

22.8

0.9

980

27

1

7/0.43

1.29

0.7

0.12

1.7

0.3

27.3

1.1

1360

37

1

7/0.43

1.29

0.7

0.12

1.8

0.3

30.5

1.2

1760

44

1

7/0.43

1.29

0.7

0.12

2

0.4

35

1.4

2240

250V (FA-) MPYCY-S

No. of
cores		 Conductor Thick. of
insulation		 Dia. of
shield
wire		 Thick. of
bedding		 Dia. of
steel wire		 Thick. of
covering		 (FA-) MPYCY-S
Size Construction O.D Nom.
overall dia		 Tolerance Cable
Weight
mm² No./mm mm mm mm mm mm mm mm mm kg/km

2

1

7/0.43

1.29

0.7

0.12

1.1

0.3

0.9

13.2

0.5

260

4

1

7/0.43

1.29

0.7

0.12

1.2

0.3

0.9

14.9

0.6

360

7

1

7/0.43

1.29

0.7

0.12

1.3

0.3

1

17.4

0.7

515

12

1

7/0.43

1.29

0.7

0.12

1.4

0.3

1.1

21.9

0.9

795

19

1

7/0.43

1.29

0.7

0.12

1.5

0.3

1.2

25.4

1

1120

27

1

7/0.43

1.29

0.7

0.12

1.7

0.3

1.3

30.1

1.2

1540

37

1

7/0.43

1.29

0.7

0.12

1.8

0.3

1.4

33.5

1.3

1970

44

1

7/0.43

1.29

0.7

0.12

2

0.4

1.5

38.4

1.5

2500
