[FA-] MPY, MPYC, MPYCY

JIS Shipboard Cables

STANDARDS
JISC 3410-1999
IEC 60332-1
IEC 60332-3 Cat.A(for FA-type)

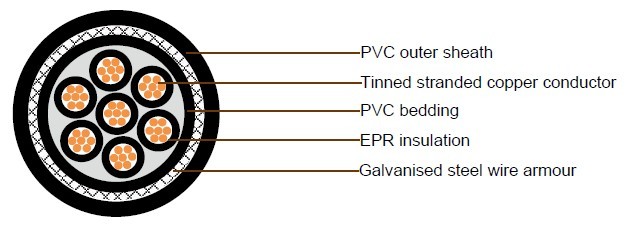

CABLE CONSTRUCTION

Conductor

M

Tinned annealed stranded copper, class 2 according to IEC 60228

Insulation

P

85°C EPR as per JIS C 3401



Cabling



Insulated conductors shall be cabled.
Flame retardant & non-hygroscopic fillers may be used

Bedding

Y

PVC as per JIS C 3401

Armor

C

Galvanized steel wire braid

Sheath

Y

PVC as per JIS C 3401

Core identification



Black No. on white insulation /Black No. on white insulation, G/Y

Outer sheath color



Black

Cable Parameter

250V (FA-) MPY
No. of
cores		 Conductor Thick. of
insulation		 Thick. of
bedding		 (FA-) MPY
Size Construction O.D Nom.
overall dia		 Tolerance Cable
Weight
mm² No./mm mm mm mm mm mm kg/km

2

1

7/0.43

1.29

0.7

1.1

8.7

0.4

85

4

1

7/0.43

1.29

0.7

1.1

9.9

0.4

125

7

1

7/0.43

1.29

0.7

1.2

11.9

0.5

190

12

1

7/0.43

1.29

0.7

1.3

15.5

0.7

315

19

1

7/0.43

1.29

0.7

1.4

18.3

0.8

465

27

1

7/0.43

1.29

0.7

1.6

22.1

0.9

665

37

1

7/0.43

1.29

0.7

1.7

24.8

1

870

44

1

7/0.43

1.29

0.7

1.8

28

1.2

1160

77

1

7/0.43

1.29

0.7

2.1

35.9

1.5

1790

250V (FA-) MPYC

No. of
cores		 Conductor Thick. of
insulation		 Thick. of
bedding		 Dia. of
steel wire		 (FA-) MPYC
Size Construction O.D Nom.
overall dia		 Tolerance Cable
Weight
mm² No./mm mm mm mm mm mm mm kg/km

2

1

7/0.43

1.29

0.7

1.1

0.3

10

0.4

155

4

1

7/0.43

1.29

0.7

1.1

0.3

11.2

0.4

205

7

1

7/0.43

1.29

0.7

1.2

0.3

13.2

0.5

290

12

1

7/0.43

1.29

0.7

1.3

0.3

16.8

0.7

445

19

1

7/0.43

1.29

0.7

1.4

0.3

19.6

0.8

615

27

1

7/0.43

1.29

0.7

1.6

0.3

23.4

0.9

840

37

1

7/0.43

1.29

0.7

1.7

0.3

26.1

1

1070

44

1

7/0.43

1.29

0.7

1.8

0.3

29.3

1.2

1290

77

1

7/0.43

1.29

0.7

2.1

0.4

37.7

1.5

2180

250V (FA-) MPYCY

No. of
cores		 Conductor Thick. of
insulation		 Thick. of
bedding		 Dia. of
steel wire		 Thick. of
covering		 (FA-) MPYCY
Size Construction O.D Nom.
overall dia		 Tolerance Cable
Weight
mm² No./mm mm mm mm mm mm mm mm kg/km

2

1

7/0.43

1.29

0.7

1.1

0.3

0.9

12

0.5

205

4

1

7/0.43

1.29

0.7

1.1

0.3

0.9

13.2

0.5

260

7

1

7/0.43

1.29

0.7

1.2

0.3

0.9

15.2

0.6

350

12

1

7/0.43

1.29

0.7

1.3

0.3

1

19

0.8

530

19

1

7/0.43

1.29

0.7

1.4

0.3

1.1

22

0.9

720

27

1

7/0.43

1.29

0.7

1.6

0.3

1.2

26

1

980

37

1

7/0.43

1.29

0.7

1.7

0.3

1.3

28.9

1.2

1240

44

1

7/0.43

1.29

0.7

1.8

0.3

1.3

32.1

1.3

1470

77

1

7/0.43

1.29

0.7

2.1

0.4

1.5

41.1

1.6

2470
