[FA-] MPYS, MPYCS, MPYCYS

JIS Shipboard Cables

STANDARDS
JISC 3410-1999
IEC 60332-1
IEC 60332-3 Cat.A(for FA-type)

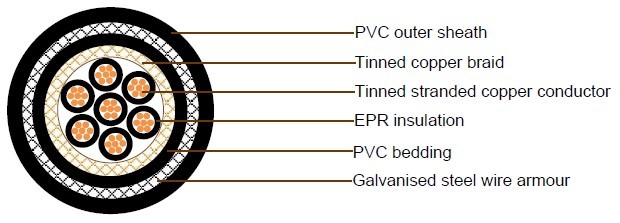

CABLE CONSTRUCTION

Conductor

M

Tinned annealed stranded copper, class 2 according to IEC 60228

Insulation

P

85°C EPR as per JIS C 3401



Cabling



Insulated conductors shall be cabled.
Flame retardant & non-hygroscopic fillers may be used

Overall shield

S

Tinned copper wire braid

Bedding

Y

PVC as per JIS C 3401

Armor

C

Galvanized steel wire braid

Sheath

Y

PVC as per JIS C 3401

Core identification



Black No. on white insulation

Outer sheath color



Black

Cable Parameter

250V (FA-) MPYS
No. of
cores		 Conductor Thick. of
insulation		 Dia. of
shield
wire		 Thick. of
bedding		 (FA-) MPYS
Size Construction O.D Nom.
overall dia		 Tolerance Cable
Weight
mm² No./mm mm mm mm mm mm mm kg/km

2

1

7/0.43

1.29

0.7

0.14

1.1

9.4

0.4

135

4

1

7/0.43

1.29

0.7

0.14

1.1

10.6

0.5

190

7

1

7/0.43

1.29

0.7

0.14

1.2

12.6

0.6

270

12

1

7/0.43

1.29

0.7

0.16

1.3

16.3

0.7

430

19

1

7/0.43

1.29

0.7

0.16

1.5

19.3

0.8

600

27

1

7/0.43

1.29

0.7

0.18

1.6

23

1

840

37

1

7/0.43

1.29

0.7

0.18

1.7

25.7

1.1

1070

44

1

7/0.43

1.29

0.7

0.18

1.8

28.9

1.2

1290

250V (FA-) MPYCS

No. of
cores		 Conductor Thick. of
insulation		 Dia. of
shield
wire		 Thick. of
bedding		 Dia. of
steel wire		 (FA-) MPYCS
Size Construction O.D Nom.
overall dia		 Tolerance Cable
Weight
mm² No./mm mm mm mm mm mm mm mm kg/km

2

1

7/0.43

1.29

0.7

0.14

1.1

0.3

10.7

0.4

205

4

1

7/0.43

1.29

0.7

0.14

1.1

0.3

11.9

0.5

260

7

1

7/0.43

1.29

0.7

0.14

1.2

0.3

13.9

0.6

355

12

1

7/0.43

1.29

0.7

0.16

1.3

0.3

17.6

0.7

540

19

1

7/0.43

1.29

0.7

0.16

1.5

0.3

20.6

0.8

735

27

1

7/0.43

1.29

0.7

0.18

1.6

0.3

24.3

1

995

37

1

7/0.43

1.29

0.7

0.18

1.7

0.3

27

1.1

1240

44

1

7/0.43

1.29

0.7

0.18

1.8

0.3

30.2

1.2

1480

250V (FA-) MPYCYS

No. of
cores		 Conductor Thick. of
insulation		 Dia. of
shield
wire		 Thick. of
bedding		 Dia. of
steel wire		 Thick. of
covering		 (FA-) MPYCYS
Size Construction O.D Nom.
overall dia		 Tolerance Cable
Weight
mm² No./mm mm mm mm mm mm mm mm mm kg/km

2

1

7/0.43

1.29

0.7

0.14

1.1

0.3

0.9

12.7

0.5

255

4

1

7/0.43

1.29

0.7

0.14

1.1

0.3

0.9

13.9

0.6

315

7

1

7/0.43

1.29

0.7

0.14

1.2

0.3

0.9

15.9

0.6

420

12

1

7/0.43

1.29

0.7

0.16

1.3

0.3

1

19.8

0.8

625

19

1

7/0.43

1.29

0.7

0.16

1.5

0.3

1.1

23

0.9

850

27

1

7/0.43

1.29

0.7

0.18

1.6

0.3

1.2

26.9

1.1

1140

37

1

7/0.43

1.29

0.7

0.18

1.7

0.3

1.3

29.8

1.2

1410

44

1

7/0.43

1.29

0.7

0.18

1.8

0.3

1.4

33.2

1.3

1680
