Longitudinally Water Blocked Cable
Applications
These outboard installation cables for naval vessels are transversally water blocked and
longitudinally completely water blocked, designed according to VG 95218 part 29.

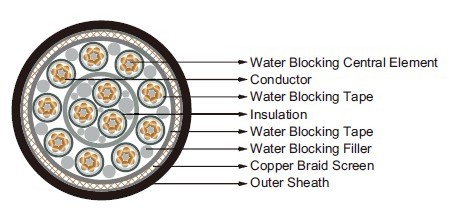

Construction
- Conductor: Copper conductor, fine stranded.
- Central Element: Water-blocking central element.
- Separator: Water-blocking tape.
- Insulation: Special elastomer.
- Fillers: Water-blocking filler.
- Separator: Water-blocking tape.
- Screen: Copper braid with tinned wires.
- Sheath: Cross linked halogen free flame retardant compound.
Electrical Data:
500V
| Number of Cores × Nominal Cross Section Area |
Maximum Transfer impedance |
| No. × mm² |
m Ω /m |
| 2×1.5 |
30 |
| 3×1.5 |
30 |
| 3G1.5 |
30 |
| 7×1.5 |
30 |
| 4×2×0.75 |
30 |
| 12×0.75 |
30 |
| 12×1.5 |
30 |
| 24×1.5 |
30 |
Dimension and Weight:
Number of Cores × Nominal
Cross Section Area |
Maximum Single
Core Diameter |
Minimum Sheath
Thickness |
Minimum Overall
Diameter |
Maximum Overall
Diameter |
Maximum Weight |
| No. × mm² |
mm |
mm |
mm |
mm |
kg/km |
| 2×1.5 |
3.4 |
2.0 |
12.6 |
13.2 |
200 |
| 3×1.5 |
3.4 |
2.0 |
13.4 |
13.8 |
250 |
| 3G1.5 |
3.4 |
2.0 |
13.4 |
13.8 |
250 |
| 7×1.5 |
3.4 |
1.5 |
15.7 |
16.2 |
430 |
| 4×2×0.75 |
2.5 |
2.0 |
20.6 |
21.2 |
560 |
| 12×0.75 |
2.5 |
2.0 |
18.5 |
19.1 |
540 |
| 12×1.5 |
3.4 |
2.0 |
20.9 |
21.5 |
700 |
| 24×1.5 |
3.4 |
2.0 |
28.1 |
28.7 |
1230 |
|
