Submarine Cables

Submarine Cables

Water Blocked Cable


Applications

These cables are water blocked, suitable for use as outboard installation cables for naval vessels.

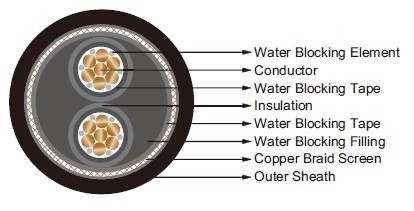

Construction

Submarine Cables

  • Conductor:Copper conductor, fine stranded.
  • Element: Water-blocking element.
  • Separator: Water-blocking tape.
  • Insulation: Special elastomer.
  • Fillers: Water-blocking filling.
  • Separator: Water-blocking tape.
  • Screen: Copper braid with tinned wires.
  • Sheath: Cross linked halogen free flame retardant compound.

Electrical Data:

500V

Number of Cores × Nominal Cross Section Area

Maximum Transfer impedance

No. × mm² m Ω /m
2×10 fix 100

Dimension and Weight:

500V

Number of Cores × Nominal
Cross Section Area
Maximum Single
Core Diameter
Minimum Sheath
Thickness
Minimum Overall
Diameter
Maximum Overall
Diameter
Maximum Weight
No. × mm² mm mm mm mm kg/km
2×10 fix 5.9 2.0 20.3 21.5 650
