Thermocouple Cables |  |
|
|
|||
 |
|
|

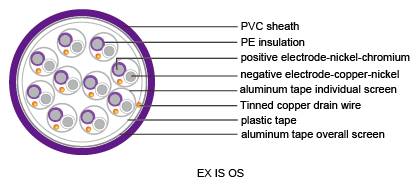

Multipair Individual/Overall Screen
Application
These cables are used in thermocouple circuits, petrochemical plants, utilities and industrial
plants.
Specification
Conductor: Solid
Type applicable: KX, EX, JX, TX, NX, KCA, KCB, RCA, RCB, SCA, RCB, BC
Insulation: PVC, PE, XLPE or LSZH thermoplastic material
Individual screen: 24 μm aluminium / PETP tape over solid tinned copper drain wire, 0.6 mm
Wrapping: At least 1 layer of plastic tape
Overall screen: 24 μm aluminium / PETP tape over 7-stranded tinned copper drain wire, 0.5
mm²
Outer sheath: PVC or LSZH thermoplastic material
Color code: According to IEC 60584-3
Flame retardancy: IEC 60332-1
Flame propagation: IEC 60332 cat. C
Temperature range: -30°C up to 70°C during operation. -5°C up to 50°C during installation.
0.5 mm²
Conductor Size (mm²) |
No. of Pairs |
Insulation Thickness (mm) |
Outer Sheath Thickness (mm) |
Nominal O.D. (mm) |
Weight* (kg/km) |
0.5 |
2 |
0.4 |
1.0 |
9.1 |
83 |
0.5 |
4 |
0.4 |
1.0 |
10.4 |
132 |
0.5 |
6 |
0.4 |
1.2 |
12.8 |
196 |
0.5 |
8 |
0.4 |
1.2 |
13.6 |
244 |
0.5 |
10 |
0.4 |
1.2 |
15.3 |
300 |
0.5 |
12 |
0.4 |
1.2 |
16.0 |
346 |
0.5 |
16 |
0.4 |
1.4 |
18.5 |
459 |
0.5 |
20 |
0.4 |
1.4 |
20.3 |
555 |
0.5 |
24 |
0.4 |
1.4 |
21.9 |
659 |
0.8 mm²
Conductor Size (mm²) |
No. of Pairs |
Insulation Thickness (mm) |
Outer Sheath Thickness (mm) |
Nominal O.D. (mm) |
Weight* (kg/km) |
0.8 |
2 |
0.4 |
1.0 |
9.8 |
102 |
0.8 |
4 |
0.4 |
1.0 |
11.3 |
167 |
0.8 |
6 |
0.4 |
1.2 |
13.9 |
247 |
0.8 |
8 |
0.4 |
1.2 |
14.7 |
312 |
0.8 |
10 |
0.4 |
1.2 |
16.7 |
384 |
0.8 |
12 |
0.4 |
1.4 |
17.9 |
462 |
0.8 |
16 |
0.4 |
1.4 |
20.1 |
591 |
0.8 |
20 |
0.4 |
1.4 |
22.1 |
718 |
0.8 |
24 |
0.4 |
1.6 |
24.4 |
878 |
1.0 mm²
Conductor Size (mm²) |
No. of Pairs |
Insulation Thickness (mm) |
Outer Sheath Thickness (mm) |
Nominal O.D. (mm) |
Weight* (kg/km) |
1.0 |
2 |
0.4 |
1.0 |
10.2 |
114 |
1.0 |
4 |
0.4 |
1.0 |
11.7 |
189 |
1.0 |
6 |
0.4 |
1.2 |
14.4 |
281 |
1.0 |
8 |
0.4 |
1.2 |
15.3 |
355 |
1.0 |
10 |
0.4 |
1.2 |
17.4 |
439 |
1.0 |
12 |
0.4 |
1.4 |
18.6 |
527 |
1.0 |
16 |
0.4 |
1.4 |
21.0 |
677 |
1.0 |
20 |
0.4 |
1.6 |
23.5 |
846 |
1.0 |
24 |
0.4 |
1.6 |
25.5 |
1006 |
1.3 mm²
Conductor Size (mm²) |
No. of Pairs |
Insulation Thickness (mm) |
Outer Sheath Thickness (mm) |
Nominal O.D. (mm) |
Weight* (kg/km) |
1.3 |
2 |
0.4 |
1.0 |
11.5 |
131 |
1.3 |
4 |
0.4 |
1.2 |
13.8 |
234 |
1.3 |
6 |
0.4 |
1.2 |
16.5 |
330 |
1.3 |
8 |
0.4 |
1.2 |
17.6 |
420 |
1.3 |
10 |
0.4 |
1.4 |
20.4 |
537 |
1.3 |
12 |
0.4 |
1.4 |
21.3 |
624 |
1.3 |
16 |
0.4 |
1.4 |
24.1 |
804 |
1.3 |
20 |
0.4 |
1.6 |
27.1 |
1004 |
1.3 |
24 |
0.4 |
1.6 |
29.3 |
1196 |
1.5 mm²
Conductor Size (mm²) |
No. of Pairs |
Insulation Thickness (mm) |
Outer Sheath Thickness (mm) |
Nominal O.D. (mm) |
Weight* (kg/km) |
1.5 |
2 |
0.5 |
1.0 |
12.6 |
151 |
1.5 |
4 |
0.5 |
1.2 |
15.1 |
270 |
1.5 |
6 |
0.5 |
1.2 |
18.1 |
382 |
1.5 |
8 |
0.5 |
1.4 |
19.7 |
504 |
1.5 |
10 |
0.5 |
1.4 |
22.4 |
623 |
1.5 |
12 |
0.5 |
1.4 |
23.5 |
724 |
1.5 |
16 |
0.5 |
1.6 |
27.1 |
958 |
1.5 |
20 |
0.5 |
1.6 |
29.9 |
1168 |
1.5 |
24 |
0.5 |
1.6 |
32.8 |
1392 |
*The number here is just approx. weight. It changes according to the insulation material and the conductor used in different type of extension cable and compensating cable.
