   400Hz Airport Cables 7-core With Double Sheath & Control Wires

400Hz Airport Cables 7-core With Double Sheath & Control Wires

Applications

These cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.

Standards

VDE 0295

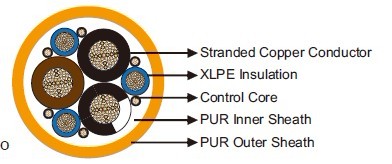

Construction

Conductor: Stranded copper conductor, Class 6 to VDE 0295/IEC 60228.
Insulation: XLPE.
Control Core: 1mm² stranded copper conductor with PVC insulation.
Inner Sheath: PUR
Outer Sheath: PUR.

Technical Data

Rated Voltage Uo/U (Um) 600/1000V
Operating Temperatures -55℃~+80℃
Minimum Bending Radius static: 4×OD; dynamic: 6×OD
Flame Retardant Yes
Abrasion Resistant Yes
UV Resistant Yes
Oil Resistant Yes

Dimensions and Weight

Construction Nominal
Diameter of
50mm² Core
Nominal
Diameter of
16mm² Core
Nominal
Diameter of
Control Core
Nominal
Diameter Under
Outer Sheath
Nominal
Overall
Diameter
Nominal
Weight
No. ×mm² mm   mm mm mm kg/km
3×50+3×16+6×1 12.2 7.2 2.5 30.4 34.0 2200
