Airport Cable |  |
|
|
|||
 |
|
Airport Pavement Cable 600V
Applications
These cables are used as airport pavement cable for secondary electrical circuits.
Standards
FAA 150/5345-30

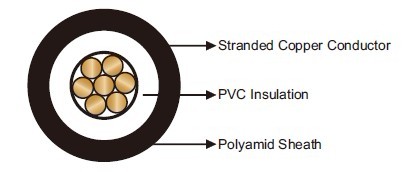

Construction
Conductor: Stranded copper conductor.
Insulation: PVC.
Sheath: Polyamid (nylon).
Technical Data
Rated Voltage Uo/U (Um) |
600V |
Operating Temperatures |
-45℃~+85℃ |
Minimum Bending Radius |
5×OD |
Abrasion Resistant |
Yes |
UV Resistant |
Yes |
Oil Resistant |
Yes |
Dimensions and Weight
Construction |
Nominal Insulation |
Nominal Sheath |
Nominal Overall |
Nominal Weight |
No. ×mm²/AWG |
mm |
mm |
mm |
kg/km |
1×4 mm² |
0.6 |
0.15 |
4.1 |
48 |
1×12 |
0.6 |
0.15 |
3.8 |
41 |
1×10 |
0.8 |
0.15 |
4.9 |
66 |
